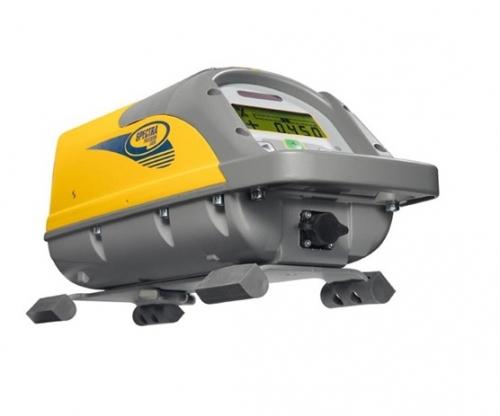

Spectra Dg511 Pipe Laser

we are offering spectra dg511 pipe laser. spectra dg511, pipe laser applications
- installation of gravity flow sanitary and storm sewer pipelines
- pipe jacking
- tunnel boring
spectra dg511, pipe laser additional features
- widest automatic self-leveling range available for quick, easy setups regardless of grade.
- line alert feature alerts when the setup line has been disturbed, ideal for working in high-vibration or wet conditions.
- ability to raise the beam outside of the trench for fast line setup or checking, eliminating the need to move the excavator off line during setup of the pipe laser.
- patented target lens transfers the beam up at an angle for easy viewing by the pipe layer
spectra dg511, pipe laser additional specifications
- grade range: -15% to +40%
- self-leveling range: complete grade range (no rough leveling required)
- line range: 20°
- line center: yes
- grade zero and quick grade: yes
- grade compensation: yes
- maintenance interval notification selectable - intervals: 3, 6, 12, 18 or 24 months
- warranty period: 1 year
- laser output: 4.5–5 mw (maximum allowable)
- laser: classification 3a/3r
- battery: pack sealed (nimh), 0-ring sealed - removable (alkaline)
- length: 37.5 cm (14.75 inches)
- diameter: 14 cm (5.5 inches)
- battery type and life nimh / 60 hours with - daily setup at 20° c (68° f)
- operating voltage: 6-16v dc
- operating temperature: -20° to 60° c (-4° to 140° f)
- storage temperature: -30° to 60° c (-23° to 140° f)
- waterproof: continuous submersion at 3 m (10 ft.)
- through the pipe range: 225 m (750 ft)
- front / over the top range: 150 m (500 ft)
- rear range: 10 m (30 ft)
- battery life (normal operation): 2 years / 24 months
spectra dg511, pipe laser includes:
- spectra rc501 3-button remote
- spectra nimh battery pack
- spectra smart charger
- spectra 956 target
- spectra 8" invert plate
