Speed Gate

Aneiz G10 Speed Gate-Support OEM and ODM. Support third-party biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner.

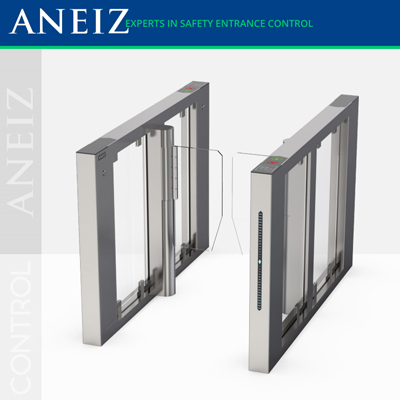

Aneiz G10 Speed Gate is a high performance pedestrian control turnstile. Usually used in high pedestrian traffic flow in both directions to control pedestrian entry or exit in restricted areas

304 Stainless steel material, durable, high quality, for long lasting use.

The Aneiz G10 Speed Gate features designed with standard relay signal, which can integrate easily to any kind of access control and fire systems through I/O (dry contact).

In case of emergency, when power goes off both directions are free.

Passing Direction: Single directional / Bi-directional.

FEATURES

Aneiz G10 Speed Gate - Compared to tripod turnstile, speed gate offers wider opening passageway 600mm-900mm to cater for bigger size pedestrian, wheelchair, luggage and big parcel to pass through easily..

Aneiz G10 Speed Gate - Swing arms will automatically open during power failure. Speed gate also can be triggered to permanently open during emergency to facilitate fast evacuation. This is complying with fire safety requirements.

Aneiz G10 Speed Gate - Support the fastest 0.2sec opening time to support higher traffic rate that can effectively reduce long queue at entrance during peak hour. You can also lower the speed to cater for small children or old people.

Aneiz G10 Speed Gate - The turnstile designed with consolidated and more durable mechanism, will not break even someone collide it, anti-collision and anti-kick function.

Aneiz G10 Speed Gate - Swing arms will close automatically if there is no pedestrian passing or passenger delay to entry.

IR sensors detect unauthorized or abnormal access. Alarm buzzer function will be triggered when the user is passing thru without authorization, tail gaiting, illegal intrusion or incorrect direction.

Aneiz G10 Speed Gate -Multiple Operating Modes-optional

IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein biometric recognition, push button, ESD, wireless remote control, insert coins / card / wristband, digit counter...

Aneiz G10 Speed Gate TECHINCAL SPECIFICATION

Material  304 Grades Stainless Steel

Cabinet Dimension  1500(L) X 100(W) X 1000(H)mm

Arm Material   Plexiglas-transparency

Passage Width         600mm standard lane

900mm handicapped lane

Throughput      45 to 55 people per minute

Response Time         ≤0.2S

Net Weight       80kg/pcs single core

100kg/pcs double core

Directional Mode     Uni-directional or bio-directional

IR Sensor6 pairs (standard)

Power Supply   AC220V/110V, 50/60Hz

Power Voltage24V DC

Power Consumption         20W

MCBF       15 million

Operating Temperature  -20 °C - 75 °C

Operating Environment   Indoor or outdoor (need with shelter)

Relative Humidity    ≤ 90%

LED Indicators Red cross means gate open,

Green arrow means gate closed

Warranty18 Months
