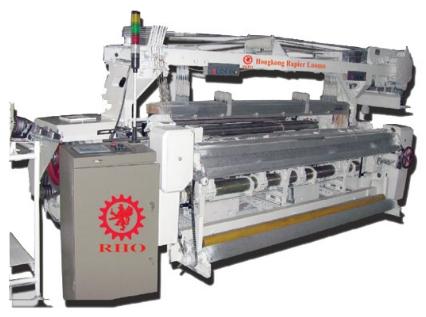

Speed Rapier Loom

We are offering speed rapier loom with auto pick finding device we manufacture and export is specially designed for weaving of wefting device adopts 6-connecting-rod wefting structure and can ensure the adjustment of the rapier entry and exit time and ensure stable wefting and weft connection. The speed rapier loom with auto pick finding device is obtainable at a very reasonable price range.
components and working :
machine adopts 4 connecting rodsspeed rapier loom with auto pick finding device short connectors and short reed seat to complete the beating motion the rocker shaft adopts φ110mm seamless tube to ensure the beating strength and can be suitable for high-speed motion and weaving of heavy and high density fabrics.the rapier transmission box adopts the advanced helix umbrella gears to ensure stable transmission.the tension device adopts 3-rear-beam tension structure, which is specially designed for balancing the warp tension of high-density weaving and can improve the quality of the weaving fabrics.equipped with automatic stop device for weft and warp broken and auto pick finding, controlled by plc program
suitable for :
weaving of heavy fabrics
technical specification :
model : rho 736 erated width : 2000mm speed in rpm : 200-220 main motor power : 1.5kw shedding device : 20 shaft electronic dobby / 24 shaft mechanical dobby color selection : 6 to 8control panel : computerized with lcd display take off : mechanical let off : mechanical / electrical wefting : 6 connecting rods weftingbeat up motion : 4 connecting rods short connectors beat up
