Spin Coater With Vacuum Chucks, Brand Name : TCH, Certification : CE

₹ 1.45 Lakh / Set

MOQ1 Set(s)
Brand NameTCH
CertificationCE
ConditionNEW
Total Carbohydrate1 YEAR
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2015

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameTCH
CertificationCE
Total Carbohydrate1 YEAR
ConditionNEW
After-Sales Service ProvidedYES
Country of OriginCHINA
Max Spin Speed10,000 RPM
Model NumberTCH-SC-4

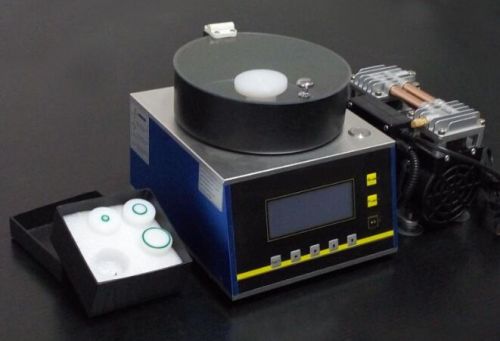

Tch-sc-4 spin coater is a high performance compact spin coater. It is designed for high uniformity thin material coatings. With its small footprint, the spin coater can be installed in a fume hood or a glove box. The upgraded program can store up to five recipes and each recipe could be edited with five spin steps.
Specification:
model
tch-sc-4
max spin speed
10,000 rpm
speed resolution
1 rpm
max spin time
3,000 s
time resolution
1 s
chuck diameter 5 inches (according to customer’s requirement)
max ramp rate
10,000 rpms
dimensions
210 mm (w) x 265mm (d) x 215mm (h)
weight
6 kg
power 100-120v，1 phase，200w（110v）
200-230v，1 phase，200w（220v）
required vacuum 0.06-0.09mpa，minimum 15lmin flow rate
vacuum tubing
4mm id, 6mm od
fuse 2 a（installed)
warranty 1 year
hs code 8486109000
