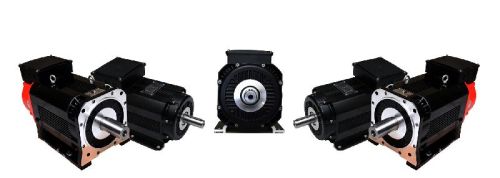

Spindle Motor and Drive

₹ 40,000 / Piece

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor
Preferred Buyer Location All over the world

SZ8000 Series Closed-loop vector control High perfomance : Control of asynchronous motor and synchronous motor are implemented through the performance current vector control technology.Overload....

Company Information

Member Since 9 Years
Nature of Business Distributor
Year of Establishment 2010

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

SZ8000 Series Closed-loop vector control

High perfomance : Control of asynchronous motor and synchronous motor are implemented through the performance current vector control technology.Overload capacity 60s for 150% of the rated current, 3s for 180% (120%) o current.
Ramp mode : Straight-line ramp; S-curve ramp; Four group of acceleration/deceleration time with the range of 0.0-6500.0 s

Applications :
It can drive a variety of motors:high-speed motors, electric spindle, variable frequency motor, AC servo motor, various synchronous motors and ordinary asynchronous motors. Use in elevator, lift, machine tools.

Voltage

Input Voltage, V	Power Range, KW
380	0.75 - 630

Specifications Series SZ8000

Item	SZ8000
Control mode	V/F(Voltage/Frequency) control Sensorless flux vector control (VC) Closed-loop vector control (CVC)
Maximum frequency	Vector control: 0-320 Hz V/F control: 0-3200Hz
Carrier frequency	1.0-16.0 kHz The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution	Digital setting: 0.01 Hz Analog setting: 0.025% of maximum frequency
Startup torque	G type: 0.5 Hz/150% (VC); 0 Hz/180% (CVC) P type: 0.5 Hz/100%
Speed range	1:100 (VC) 1:1000 (CVC)
Speed stability accuracy	± 0.2% (VC) ± 0.02% (CVC)
Torque control accuracy	± 5% (CVC)
Overload Capacity	G type : 60s for 150% of the rated Current, 3s for 180% of the rated current. P type : 60s for 120% of the rated current, 3s for 150% of the rated current.
Torqued boost	Auto boost Customized boost 0.1% - 30.0%
V/F Curve	Line V/F Curve Multi-point V/F curve N-power V/F curve (1,2-power, 1.4-power, 1.6-power, square)
V/F Separation	Two types : Complete Sepration, Half Separation
Ramp Mode	Straight- line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC Braking	DC Braking frequency : 0.00 Hz to maximum frequency Braking time : 0.0-100.0s Braking action current value : 0.0%-100.0%
JOG control	JOG frequency range : 0.00-50.00 Hz JOG acceleration/deceleration time : 0.0 -6500.0s
Built-in multiple Present speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
