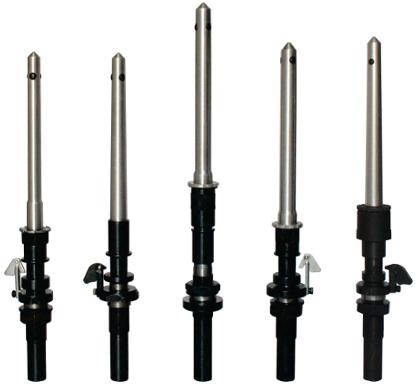

Spindles And Inserts

TeraSpin's high speed spindles are known for their sturdy construction and energy efficiency. Millions of spindles are in service around the world. Complete spindles are available in a variety of configurations and for auto-doffing system. TeraSpin HF 100 inserts are next generation high performance, high speed inserts. The HF 100 insert, with approximate 20 percent lesser oil content, is designed to run at 25000 RPM (mechanical). TeraSpin offers complete spindles with HF 100 inserts.

Technical Details

• Application: suitable for ring spinning and doubling frames for cotton, man-made fibres, wool, and blends

  Key Features

• Buffer spring support below footstep bearing for cushioning axial loads
• Differential cone angles to support hydrodynamic lubrication between spindle blade and footstep bearing
• Two point contact; at footstep and neck bearing to minimise friction
• High speeds of up to 25,000 rpm (mechanical)
• Compact neck bearing to enable smaller wharve diameter
• Flexible centring sleeve prevents undue wear and tear
• Helical coil spool for damping lateral movement

  Variants

• Variants 160/170/180/190/210 mm lift with minimum 18.5 mm wharve dia.
• Spindles with HF-21 insert (up to 20000 rpm, mechanical)
• Spindles with HF-1 insert (up to 22000 rpm, mechanical)
• Spindles with HF-100 insert (up to 25000 rpm, mechanical)
