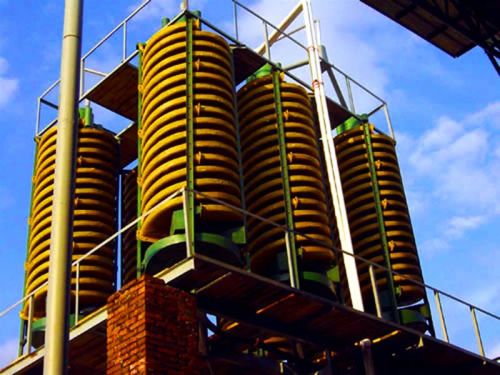

Spiral Chute

We offer Spiral Chute.
Glass reinforced plastic rotary spiral chute is a new machine that was first researched and manufactured in 1977 by combing the features of spiral concentrator, spiral chute, concentrator table and centrifugal separator and it is the ideal equipment for mining and ore beneficiation and especially for the mining of sand ore in the coast, riverside, beach and brook.
This equipment is suitable for separating non-ferrous metals, rare metals and non-metal ores whose granularity is 0.3--0.02 mm such as iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, tantalum and niobium ore. This machine has the advantages of stable separation, easy control; big allowed change ranges of the ore density, high concentration ratio, high recovery, small coverage size, low water consumption, simple structure, no need for power, big processing capacity, easy installation, convenient operation and small investment and high return.
working principle
Erect the spiral chute, calibrate the perpendicular line and fix it in a proper position with iron structure or wood. Send the mineral sand with the sand pump to the two feeding mouth on the top of the spiral chute, add make-up water to adjust the density of the ore pulp, and the ore pulp will naturally rotationally flow down and produce an inertial centrifugal force in the rotary slant flow. The gravity and the centrifugal force will separate the ores and sand according to the proportion, granularity and shape of the ore sand, and the ore concentrate will flow into the concentrate funnel and be discharged with the pipe and the tailings will flow to the tailing funnel and be discharged to the sand tank with the pipe and drained by the sand pump to complete the whole separation process.
