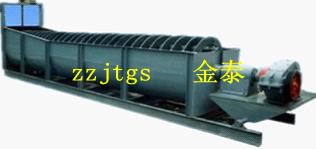

jintai30Spiral Classifier mainly consists of gears, screw body, chute, riser, bush and pulp dump valve.
Categories:
single—spiral classifier, double—spiral classifier, high-weir single spiral classifier and high-weir double spiral classifier; immersed single spiral classifier and immersed double spiral classifier.
Advantages:
Spiral Classifier is simply designed,and it is easy to operate.
Application:Spiral Classifier is indispensable in concentration plant. It can work together with a ball mill to form a closed cycle to separate ore. Moreover, it can be used alone in the gravity concentration plant to separate sand and slurry or make granularity separation of ore pulp in metal concentration process. It can be also used in sand washing, desliming and dehydration.
Main Technical Parameters:
Type Model Spiral Speed(rmin) Capacity(td) Size(mm) Trough Slope DriveMotor Hoist Motor Weight(kg)
By Sand Return By Overflow Diameter Length Model Power Model Power
High-weir Single Spiral Classifier FLG-3 7.7 30～80 10-30 φ300 3680 14-18 Y100L1-4 2.2 668
FLG-5 8 145～260 21-75 φ500 4246 14-18 Y112M-6 2.2 1600
FLG-7 7.8 100～445 31-165 φ750 4980 14-18 Y132S-6 3 ManualOperation
FLG-10 6.7 473～1026 85 φ1000 6120 14-18 Y132M2-6 5.5 ～4000
FLG-12 6 1145～1600 150 φ1200 6125 14-18 Y132M2-6 5.5 Y90L-4 1.5 7940
FLG-15 2.5～6 1830～2740 235 φ1500 7940 14-18 Y160M-6 7.5 Y100L1-4 2.2 11680
FLG-20 3.6～5.5 3240～5940 400 φ2000 8250 16-18 Y160L-6,Y160L-4 11;15 Y100L2-4 3.0 20814
FLG-24 3.64 6800 580 φ2400 8150 14-18.5 Y160L-4 15 Y100L2-4 3.0 ～25650
High-weir Double Spiral Classifier 2FLG-12 6.0 2340～3200 310 φ1200 7940 14-18.5 Y132M2-6 5.5×2 Y100L1-4 2.2×2 15840
2FLG-15 2.5～6 2240～5360 460 φ1500 7940 14-18.5 Y160M-6 7.5×2 Y100L-4 2.2×2 22903
2FLG-20 3.6～5.6 7780～11880 800 φ2000 8150 14-18.5 Y200L2-6,Y200L-4 22;30 Y100L2-4 3.0×2 36341
2FLG-24 3.67 13600 1160 φ2400 8900 14-18.5 Y200L-4 30×2 Y100L2-4 3.0×2 45847
Immersed Single Spiral Classifier FLC-10 6～7.4 160～700 50～85 φ1000 7913 14-18.5 Y132M2-6 5.5 manual operation
FLC-12 5～7 1150～1640 120 φ1200 8100 14-18.5 Y160M-6 7.5 Y90L-4 1.5 9583
FLC-15 2.5～6 1140～3740 185 φ1500 10190 14-18.5 Y160M-6 7.5 Y100L1-4 2.2 15320
FLC-20 3.6～5.5 3240～5940 320 φ2000 12605 14-18.5 Y160L-4,Y160L-6 11;15 Y100L2-4 3.0 27753
FLC-24 3.64 6800 455 φ2400 13940 14-18.5 Y180M-4 18.5 Y112M-4 4.0 37267
Immersed Double Spiral Classifier 2FLC-12 6.0 1770～2800 240 φ1200 14-18.5 Y160M-6 7.5×2 Y100L1-4 2.2×2 19610
2FLC-15 2.5～6 2240～5360 370 φ1500 10210 14-18.5 Y160M-6 7.5×2 Y100L1-4 2.2×2 27450
2FLC-20 3.6～5.5 7780～11880 640 φ2000 12605 14-18.5 Y200L2-6,Y200L-4 22;30 Y100L2-4 3.0×2 ～50000
2FLC-24 3.67 13700 910 φ2400 10940 14-18.5 Y200L-4 30×2 Y100L2-4 3.0×2 53491
