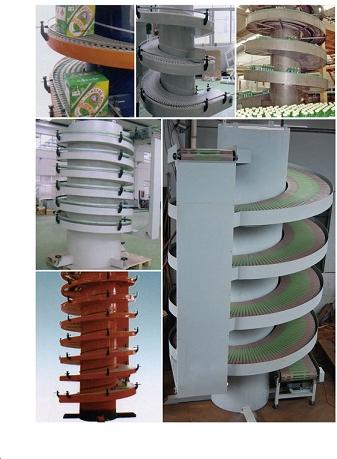

Spiral Conveyor

We are offering spiral conveyors are widespread application in metallurgy, building materials, chemical industry, grains, machine work and any others industry, compares with other conveyors, they have advantage in small section dimension, good sealing property, steady and reliable running, operational safety, service simple and so on merits.
standard specification graph
1. frame material：carbon steel baked varnish and stainless steel
2. total length of the drawing:
under carbon steel chains 60 meters,
stainless steel chains 48 meters
3. top chain width: 400mm,600.
4. rise-fall height:
1. With single drive the max conveying height is 6 meters, the actual speed and load will match to conveyor loops and total length of top chains.
2. With multi drives series the max conveying height is 20 meters.
5. applications:
beverage, ，post，newspaper, printing, foods, medicine, logistics, electrics industry.
6. each conveyor most load bearing (single drive):
carbon steel chains
