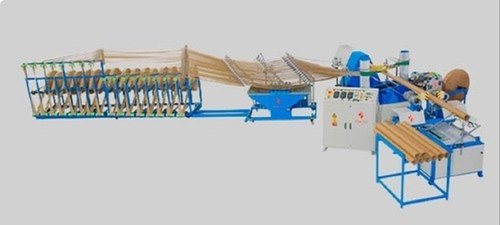

Spiral Paper Tube And Paper Core Making Machine

In this Machine we have all ranges ,i.e 6 layers,12 layers,18 layers, 22 layers, 32 layers and so many as per customer’s demand. This whole plant consist of  5 to 6 machines as per requirement.
We are an acclaimed name to offer a wide range of quality proven paper tube making machine that is used comprehensively in textile and packaging industry.
The offered paper tube production line is designed and manufactured using optimum quality materials and highly advanced technology to meet the international quality standards.
These paper tube production lines are available with us in various specifications to meet the requirements of various clients.
Being a customer oriented organization we always try to timely deliver high-quality paper tube production lines to our valued clients at leading market price.
Paper Tube Making Plant for making Paper Tubes in Different sizes the Machine is complete with 15 HP AC motor with AC Drive (3 phase 440v),reduction gear box &  Capacity detachable reel stand.
Glue Station- 2 HP AC Motor and knives for glue adjustment (cascade type, rotodel pump)
Auto Rough Cutter to Cutting the Cores in different Sizes.Operated by accombined pneumatic and electric power. 2HP AC Motor (Tube length can be adjusted by the limit switch or photo cell.
Fine Cutting Machine.-Fine Cutting Machine (working width 60") for Cutting the Tubes in Fine Size as per your requirement. 8 Holders with Knives and Machine with 2HP AC Motor.
Parchment station- Parchment paper stand for pasting the finishing paper on out side of paper tubes. Light weight easy to operate. Paper speed is synchronized with winder speed.
Sliting Machine-Sliting Machine with 1000 mm. Working 5 HP DC Motor with DC Drive. With 10 Cutter Sets with Top and Bottom, Heavy duty casting body Duplex rewinding, Single Shaft Loading
Air Compressor  ( optional)-200 LBS Air Compressor with 2 HP AC Motor Single Or Three Phase. Branded Co. make. Wall thickness as per cutomer requirement.
Features

• High functionality
• Higher output
• Extra strong tubes
• Electronic proportional control system for winding speed adjustment
• Rapidly interchangeable mandrels
• Pneumatic control of winding belt tension
• Built-in control panel with remote station
