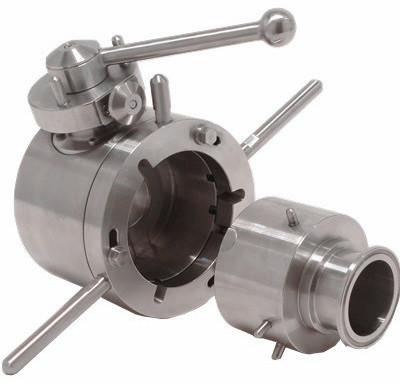

Split Butterfly Valve

We are offering split butterfly valve.
An alpha beta valve (split butterfly valve) system is made up of an active and a passive split-valve. The transfer of material from one container to another container is being carried on with seal condition, and the transfer process guarantees the sterile situation won't be destroyed or avoid being spread of the toxic materials in the container.
purpose of use
a. Protection of sterile product-guarantee the transfer process of sterile product avoiding being effected by outside microbe.
B. Protection of operator- avoiding the leakage of toxic materials during transfer process which is harmful for people.
C. Eliminate loss of product yield during transfer.
D. Effective dust control during transfer process
e. Reduce the potential of product cross-contamination.
F. Save the cost on equipment
application case
-sterile api transfer and subpackage
-isolator charge and discharge
-contained dispensing, charge, discharge, sampling and milling
-containment transfer of sterile rubber plug
-transfer toxic product
application
pharmaceutical biotechnical chemical food beverage nuclear cdc
technical parameter
-metal to metal nanoscale disc seal
-body material: 316l stainless steel, polished surface
-sealing material: high quality silica gel
-standard connection, accept customized corresponding connection
-outside of container operate valve switch and product transfer
-comply with the new version of gmp, fda, eu production requirements
specification
standard size: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm
connections: pn6, pn10, ansi#150, tri-clamp
customized size: accept customized non-standard size
