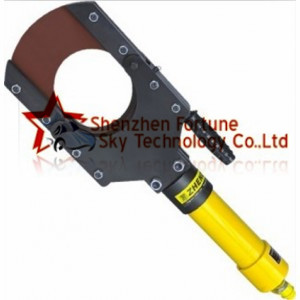

Contact SupplierWe are offering name: split hydraulic cable cutter
model: cpc-150h
output: 18ton
length: 670mm
weight:25kg
cut range: 150mm diameter of copper or aluminum armored cable, wires, telephone cables.
attention: do not cut steel core cable.
split hydraulic cable cutter description:
1.) convenience of cut jobs in the distribution box, suitable for quick cutting high pressure pe, iv electric wires, telephone cables.
2.) high-carbon steel blade solid tungsten heat treatment hrc-65 degrees
3.) exclusive of pumps which should be sold separately, associated with the use of cp-700 series pump.
4.) with a pt3 8 "high pressure fittings.
electric high-pressure pump description
1.) there are high and low pressure two-stages design, fuel output fast, easy to operate.
2.) this style has foot paddle and manual types, attached 2 meters long fuel tubing, you can purchase any longer.
3.) pressure can be kept mid-suspension, the internal design on safety protection for hydraulic pressure.
4. ) operation output pressure 63mpa, quick connectors, pt3 8 "-19 .
5. ) oil must be replaced every six months.
model no.: fs-zhh630a
output pressure: 63mpa
flow: 1lmin
voltage: 220v380v
fuel tank volume: 8l
motor power: 0.75kw
speed: 1400 rmin
size: 380*300*510mm
package: wooden case
