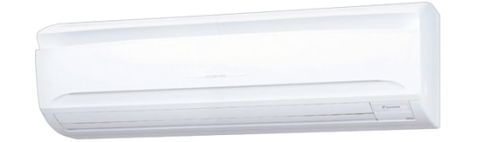

Daikin Air Conditioner, For Room, Voltage : 220V, 380V

Brand NameDaikin
Product TypeSplit Wall Mounted
Usage/ApplicationRoom
Country of Origin220V,380V
Supply TypeSupplier, Retailer
Preferred Buyer Location India only

Product Details

Usage/ApplicationRoom
Country of Origin220V,380V
Brand NameDaikin
Product TypeSplit Wall Mounted
Power SourceElectrical
Power TypeAC,DC

Designed for both cooling as well as heating purposes, Daikin’s FTXF Series is poised to deliver smart air conditioning experience. From quite operation to intelligent eye and self-diagnosis, this power-packed machine is truly beyond imagination.

Measurement conditions:

Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, 24° CWB; piping length 5 m.
Heating capacity is based on: indoor temp. 20° CDB; outdoor temp. 7° CDB, 6° CWB; piping length 5 m.
Sound levels are based on temperature conditions 1. and 2. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Specification

Model name	Indoor unit			FTXF50QVMA	FTXF60QVMA	FTXF71QVMA
Model name	Outdoor unit			RXF50QVMA	RXF60QVMA	RXF71QVMA
Power supply				1 50Hz 230V	1 50Hz 230V	1 50Hz 230V
Power supply				(220-240V)	(220-240V)	(220-240V)
	Power supply intake			Outdoor unit	Outdoor unit	Outdoor unit
Cooling capacity Rated (Min.~Max.)			kW	5.0 (1.5~5.5)	6.0 (1.6~6.5)	7.1 (2.0~7.5)
Cooling capacity Rated (Min.~Max.)			Btu/h	17,100 (5,100~18,800)	20,500 (5,500~22,200)	24,200 (6,800~25,600)
Heating capacity Rated (Min.~Max.)			kW	5.2 (1.0~6.0)	6.5 (1.0 ~6.7)	8.0 (2.0 ~8.0)
Heating capacity Rated (Min.~Max.)			Btu/h	17,700 (3,400~20,500)	22,200 (3,400~22,900)	27,300 (6,800~27,300)
Power consumption Rated (Min.~Max.)		Cooling	W	1,530 (300~1,780)	1,850 (300~1,970)	2,190 (400~2,320)
Power consumption Rated (Min.~Max.)		Heating	W	1,590 (230~1,890)	1,990 (230~2,010)	2,410 (380~2,410)
Rated COP				3.27	3.24	3.24
Running current		Cooling	A	7.1-6.8-6.6/7.1- 6.8	8.6-8.2-7.9/8.6-8.2	10.2-9.8-9.4/10.2-9.8
Running current		Heating	A	7.4-7.1-6.8/7.4-7.1	9.3-8.9-8.5/9.3-8.9	11.2-10.7-10.2/11.2-10.7

Indoor Unit

Panel colour				Pure White	Pure White	Pure White
Dimensions HxWxD			mm	285×770×223	295×990×263	295×990×263
(Package dimensions)			mm	(320×830×360)	(386×1,102×389)	(386×1,102×389)
Weight (Gross)			kg	9(12)	12 (17)	13(18)
Airflow rate		Cooling	m3/min.	12.6	18.8	21
Airflow rate		Heating	m3/min.	12.8	20	21
Operation sound H/M/L/SL	Cooling	Cooling	dBA	45/40/35/28	46/41/35/29	49/45/37/30
		Heating	dBA	45/39/33/28	46/40/32/29	49/43/35/30

Outdoor Unit

Dimensions HxWxD			mm	595 x 845 x 300	595 x 845 x 300	695 x 930 x 350
(Package dimensions)			mm	(660 x 995 x 410)	(660 x 995 x 410)	(762 x 1,004 x 475)
Weight (Gross)			kg	41(44)	41(44)	54(61)
Operation sound H/SL	Cooling	Cooling	dBA	47/44	49/46	53/47
		Heating	dBA	50/46	51/47	54/49
Piping length	Charge-less		m	10	10	10
	Max. length		m	30	30	30
	Max. height		m	20	20	20
Piping connection	Gas/Liquid		mm	12.7/ 6.4	12.7/ 6.4	12.7/ 6.4
Operation limit	Cooling		oCDB	-10~46	-10~46	-10~46
	Heating		oCDB	-15~18	-15~18	-15~18
