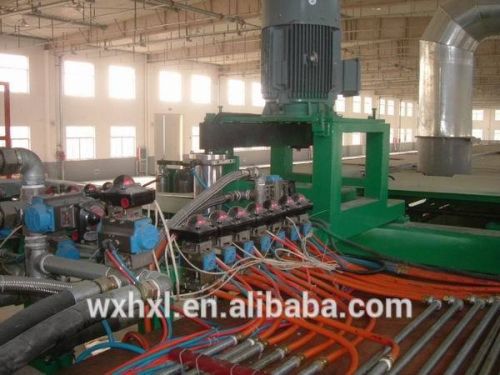

Sponge Production Line, Packaging Type : Blue White

We are offering sponge production line.
Main technical parameter and the requirement of configuration
1. Specification of all individual part
1.1 foaming control platform (l×w×h) 4m×3.2m×3.2m
1.2 board of baking channel (l×w) 7.7m×1.2m ~ 2.3m
1.3 transport line of side baking channel (l×w×h) 17.5m×2.4m×1.2m
1.4 shelf of oven (l×w×h) 16.9m ×4.55m×3.2m
1.5 horizontal transfer line in baking machine (l×w×h) 25.0m×2.4m×0.8m
1.6 cutter cutting width2.4m×1.4m (width)
1.7 one set of interconvertible mixer head
1.8 a set of pre-mixer for silicone oil
2.main technical index and function
2.1 dimension(l×w×h): 41m×4.55m×3.2m
2.2 number of component: 13components
2.3 foaming width : 1200mm ~ 2300mm
2.4 foaming height: 1300mm (max.)
2.5 foaming density : 8kgm³ ~ 55kgm³
2.6 foaming speed : 2000mmmin ~ 7000mmmin
2.7 maximum foaming capacity: 300lmin
2.8 equip with edge membrane lifting machine(flat top function)
2.9 equipment of membrane automatic rolling
2.10 alarm device of starved feeding
2.11 type of spraying material: spray head under (up, down, front, back can be adjusted) and foaming in slot type(one set of w1500 and one set of w2000)
2.12 foaming controlling method
① it can be controlled with total automatic human-machine surface and plc. It cans product sponge with different formula continuously at a time.
② the process controlled by frequency converting control. And the production line is synchronization system.
③ the height and width of the falling plate can be adjusted by electric device.
④ the width of side chain board can be adjusted by electric device.
2、 cuttable foam(l×w×h): 1500mm×2300mm×1300mm; the length (1500mm) is the shortest.
3、 the power of mixing head: 37kw
4、 total power: 135kw
