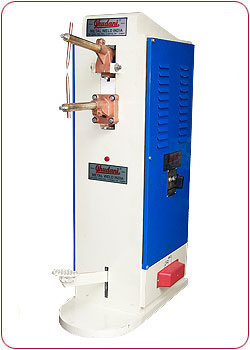

Spot Cum Projection Welding Machines

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Design The Spot Cum Projection Welding passes a high current at low Voltage through the electrodes to the welding area. As the machine cycles, exert pressure on the metal, a joint is formed....

View More Details

Send Enquiry

Company Information

Metal Weld India

Dholewal, Ludhiana, Punjab

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Design The Spot Cum Projection Welding passes a high current at low Voltage through the electrodes to the welding area. As the machine cycles, exert pressure on the metal, a joint is formed and coalescence occurs. All the parameters are precisely controlled; Pressure by the air regulator. Time by electronic circuit and current by transformer taps to ensure a perfect welding joint.

Salient Features
Six models between 30 KVA to 200 KVA. All operational controls-Air, Water and Electronics are machine mounted for easy access, Safe and Simple maintenance. Sturdy ram assembly permits high speed operation. Weld sequence controller, sophisticated timer with squeeze, weld, hold and off timings with single/repeat cycle facility, weld timing being controlled by thyristorizedcircuit heat controllable from 5% to 95%.

Nominal Capacity
Nominal Primary Voltage 2 Phase	V	415	415	415	415	415	415
Nominal Primary Current	I	70	120	180	240	360	480
Nominal Main Frequency	Hz	50	50	50	50	50	50
Standard Stroke	mm	75	75	75	100	100	100
Minimum-Maximum Force	Kgf	160-480	160-480	360-1080	360-1080	360-1080	640-19200
Air Supply Maximum Pressure Kg/Cm2	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Water Supply Maximum
Base Pressure	Kg/Cm²	2.5	2.5	2.5	3.5	3.5	3.5
