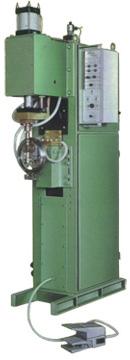

Spot Welding Machine

Electrodes Control System The upper electrode actuated by heavy duty 2-way cushioned pneumatic cylinders controlled be an electrically operated 4-way solenoid valve. Compressed air at 1.5 kgcm2 -5.6 kg.cm (20 to 80 psl) acting on the pneumatic cylinder provides electrode force. Machine provided with air filter, air lubricator, air pressure regulating valve, air pressure gauge. Adjustment Of Electrodes Force By air pressure regulating valve provide on the machine. Adjustment Of Electrodes Stroke By vertical adjustment of lower armplaten
