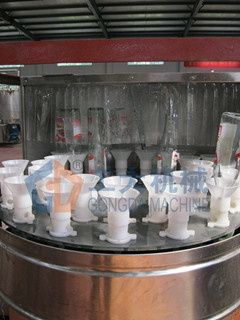

Spray Bottle Washing Machine

We are offering spray bottle washing machine. 1. technology specification
model cx-18 cx-12
production capacity 3000-6000 b/h 2000-4000 b/h
bottle neck ф50-ф100mm ф50-ф100mm
bottle height 160-320mm 160-320mm
mainframe power 0.75kw 0.75kw
outer size 1600×1500×1700（mm） 1200×1100×1700(mm)
machine weight 1200kg 800kg
2. technology parameter
washing medium sterile water
washing time 3s
drying time 2s
water pressure 0.2mpa-0.4mpa
3. operation principle
conveyor belt will put needed cleaning bottles into the bottle screw，due to the bottle inputting screw and star wheel catch plate are continuously operating in-phase which will synchronously convey the needed cleaning bottles to the center of transferring manipulator and the manipulator along with the rotary table are spraying and washing the needed cleaning bottles. It will revert into the start-off state after completion. Then the bottle outputting star wheel catch plate makes the cleaned bottle out so the whole process is completed.
