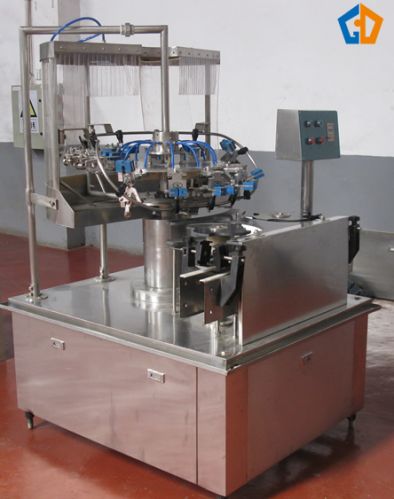

Spray Bottle Washing Machine, Brand Name : GD

We are offering spray bottle washing machine.
1. technology specification
model
cx-18
cx-12
production capacity
3000-6000 bh
2000-4000 bh
bottle neck
ф50-ф100mm
ф50-ф100mm
bottle height
160-320mm
160-320mm
mainframe power
0.75kw
0.75kw
outer size
1600×1500×1700（mm）
1200×1100×1700(mm)
machine weight
1200kg
800kg
2. technology parameter
washing medium
sterile water
washing time
3s
drying time
2s
water pressure
0.2mpa-0.4mpa
3. operation principle
conveyor belt will put needed cleaning bottles into the bottle screw , due to the bottle inputting screw and star wheel catch plate are continuously operating in-phase which will synchronously convey the needed cleaning bottles to the center transferring manipulator , and the manipulator along with the rotary table are spraying and washing the needed cleaning bottles , it will revert into the start-off state after compeleted , then the bottle outputting star wheel catch plate makes the cleaned bottle out , so the whole process is completed .
