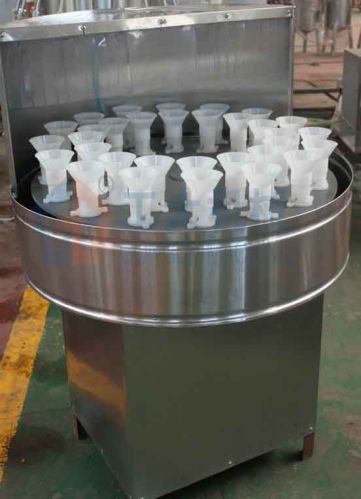

Contact SupplierWe are offering spray bottle washing machine.
establish working routine willfully, easy to use. Operating speed stability. Speed smoothing.
1. Technology specification
model cx-18 cx-12
production capacity 3000-6000 b/h
2000-4000 b/h
bottle neck ф50-ф100mm
ф50-ф100mm
bottle height 160-320mm
160-320mm
mainframe power 0.75kw 0.75kw
outer size 1600×1500×1700(mm) 1200×1100×1700(mm)
machine weight 1200kg 800kg
2. Technology parameter
washing medium sterile water
washing time 3s
drying time 2s
water pressure 0.2mpa-0.4mpa
3. Operation principle
conveyor belt will put needed cleaning bottles into the bottle screw , due to the bottle inputting screw and star wheel catch plate are continuously operating in-phase which will synchronously convey the needed cleaning bottles to the center transferring manipulator , and the manipulator along with the rotary table are spraying and washing the needed cleaning bottles , it will revert into the start-off state after completed , then the bottle outputting star wheel catch plate makes the cleaned bottle out , so the whole process is completed .
