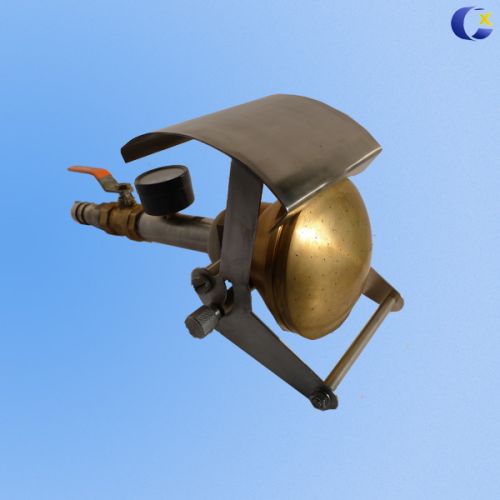

Contact SupplierWe are offering spray nozzle for checking the protection against water, to prove the degree of protection ipx3 and ipx4. Positioning of the shield allows for both "protection against spraying water" and "protection against splashing water" tests. The spray tester is the low cost alternative to the oscillating spray test for ipx3 and ipx4. Complete test device includes nozzle head, moving shield, pressure gauge, handle, flow control and shut off valve, and any connecting hose. Spherical cap of the spray nozzle is nickel-plated brass, all other metallic parts of stainless or nickel-plated steel.
Technical parameters:
number of holes total: 121
diameter of nozzle holes: 0.5mm
material: brass
pressure gage range: 0 ~ 0.4mpa
pressure gage: 0 ~ 0.25mpa
water discharge: 10lmin, ±5%, can adjustment
