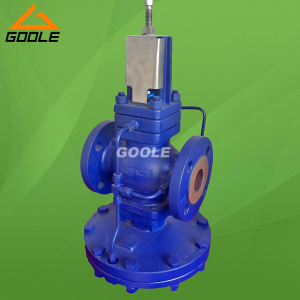

Spriax Sarco DP17 Pilot Operated Steam Pressure Reducing Valve

MOQ1 Piece(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

232@21barg minimum operating temperature(tmio) 0 maximum differential pressure(pmx) 17bar maxiumu cold hydraulic test pressure 38barg material of main component. name of component material of....

View More Details

Send Enquiry

Company Information

Yongjia Goole Valve Co,. ltd

Wenzhou

View Number

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2008

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

232@21barg
minimum operating temperature(tmio) 0
maximum differential pressure(pmx) 17bar
maxiumu cold hydraulic test pressure 38barg
material of main component.
name of component material of component
valve body,valve cover wcb
valve seat 2cr13
valve clap 2cr13
valve rod 2cr13
membrane brass
control spring 60si2mn
dp17 pressure reducing valve's connecting dimension.
dn l h1 h d
15 147 221 133 185
20 154 224 136 185
25 160 235 145 207
32 180 236 156 207
40 200 238 176 255
50 230 246 183 255
65 250 295 200 320
80 310 323 230 350
100 350 340 263 380
125 400 350 306 455
150 450 375 330 500
