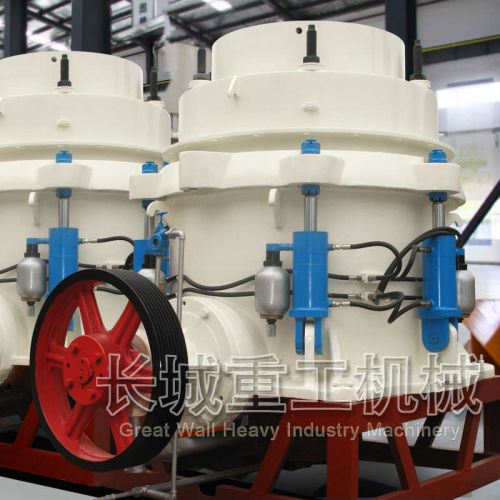

Contact SupplierSpring cone crusher application:
our mining machine is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on. Spring cone crusher can crush materials with moh's scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (pyb) is applied to secondary crushing; the medium type (pyz) and the short-head (pyd) are applied to fine crushing.
Spring cone crusher working principle
when spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle close to the bowl liner and far away from the bowl liner from time to time. The raw materials are pressed, impacted and finally crushed in the crushing cavity.
Spring cone crusher features 1. High capacity and good quality;2. Long life for quick-wear parts, and low investment cost;3. Dilute petrol stations for continuous lubrication to reduce downtime maintenance time.
Spring cone crusher main specifications
model max. Feeding sizes(mm) adjustable range of output size (mm) capacity(th) motor power(kw) weight (t) overalldimension(mm)
pyb600 65 12-25 10-25 30 5 2234×1370×1675
pyd600 35 3-13 5-20 30 5.5 2234×1370×1675
pyb900 115 15-50 50-90 55 11.2 2692×1640×2350
pyz900 60 5-20 20-65 55 11.2 2692×1640×2350
pyd900 45 3-13 15-50 55 11.3 2692×1640×2350
pyb1200 145 20-50 110-168 110 24.7 2790×1878×2844
pyz1200 100 8-25 42-135 110 25 2790×1878×2844
pyd1200 50 3-15 18-105 110 25.6 2790×1878×2844
pyb1750 215 25-60 280-480 160 50.3 3910×2894×3809
pyz1750 185 10-30 115-320 160 50.3 3910×2894×3809
pyd1750 85 5-15 75-230 160 50.4 3910×2894×3809
pyb2200 300 30-60 490-800 260280 80 4622×3302×4470
pyz2200 230 10-30 200-580 260280 80 4622×3302×4470
pyd2200 100 5-15 120-340 260280 81.4 4622×3302×4470
(more models see web site http:www.greatwallmill.com)
services
1.pre-sales service offering comprehensive technical and business consultation services; proposing the most suitable scheme and equipment for our clients;
designing and fabricating targeted products according to the special requirements of clients; training periodically high qualified service technician.
After-sales service highly inspecting equipments in every working procedure, quality comes first; fast & safe delivery; assisting our clients for foundation construction of equipments; dispatching engineers to install and debug equipments; training the first-line operators on site; regularly visit clients to solve production problems; providing life-long maintenance service; providing technical exchanging;
