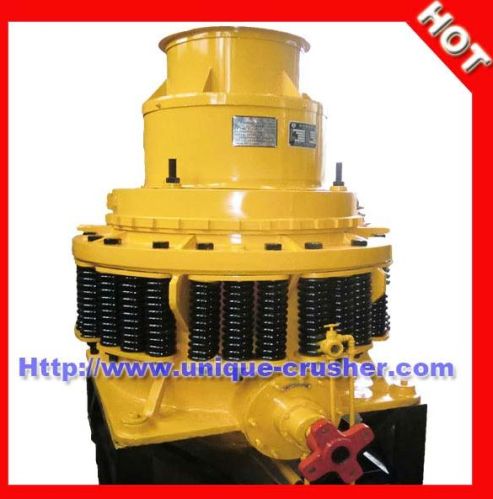

Spring Cone Crusher

Spring cone crusher
we are offering spring cone crusher.
spring cone crusher, cone crusher, stone crusher, crusher
spring cone crusher adopting world advanced technology is designed and made through to be the crusher of world advanced level. It is widely used in metallurgical, architectural, water and electricity, traffic, chemical, architectural material industries.
feature and advantage:
1. Reasonable structure advanced crushing principle and technical specification, reliable work and
low cost.
2. Strong crushing ability; high efficient productivity; high capacity.
3. Reliable hydraulic system providing safe and effective overload protection.
4. Two type of crushing chamber are for wide range of product size requirement.
5. High automation adopting hydraulic adjustment and hydraulic clean cavity setting.
after-sale service :
erection and commissioning
operator training
spare parts supply
warranty terms: more than 12 months
delivery time: 25~30 days after receiving advanced payment .
products certificate: tuvrheinland ce , iso9001:2000
model: pyb 900 pyz 900 pyd 900
weight (t): 11.2 11.2 11.2
power (kw): 55 55 55
diameter (mm): ð¤900 ð¤900 ð¤900
opening (mm): 135 70 50
feeding (mm): 115 60 50
discharge (mm): 15-50 5-20 3-13
capacity (t/h): 60-105 50-90 15-50
model: pyb1200 pyz1200 pyd 1200
weight (t): 35 35 35
power (kw): 130 130 30
diameter (mm): ð¤1200 ð¤1200 ð¤1200
opening (mm): 170 115 60
feeding (mm): 145 100 50
discharge (mm): 20-50 8-25 3-15
capacity (t/h): 110-168 42-135 18-105
model: pyb1750 pyz1750 pyd 1750
weight (t): 50.2 50.2 50.2
power (kw): 160 160 160
diameter (mm): ð¤1700 ð¤1700 ð¤1700
opening (mm): 250 215 100
feeding (mm): 215 185 85
discharge (mm): 10-30 10-30 5-15
capacity (t/h): 280-480 115-320 75-230
model: pyb2200 pyz2200 pyd 2200
weight (t): 80 80 80
power (kw): 260/280 260/280 260/280
diameter (mm): ð¤2200 ð¤2200 ð¤2200
opening (mm): 350 275 130
feeding (mm): 300 230 100
discharge (mm): 30-60 10-30 5-15
capacity (t/h): 590-1000 200-580 125
