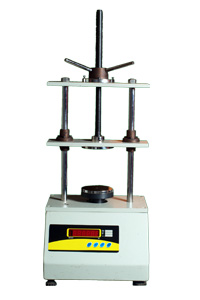

Spring Testing Machine

Mechatronic Control System’s range of Spring Testing Machines is widely used for quick and accurate testing of compression & tension test of springs. The machine comprise of two hard chrome plated columns with fine cut single screw with hand wheel for manual loading and unloading arrangement. The machine uses a high precision Load Cell for measurement of force. For displacement measurement Mechanical Linear Scale or Digital Vernier Caliper or Rotary Encoder is used. Measuring System is based on latest microcontroller / microprocessor based electronic panels with all facilities.

• Digital Vernier Scale with 0.01 mm resolution for displacement measurement (6” or 12”)
• Rotary Encoder with separate digital unit with resolution 0.1 mm or 0.01mm
• 9 /24 pin Dot Matrix printer interface
• Serial RS-232 interface with windows Xp based advanced software for real-time graph and automatic result calculations
• Motorized Loading Operations

• Microprocessor / Microcontroller Based Unit
• Force Measurement Accuracy ± 1% Of Indicated Load Or 0.5% Of Full Load Value Whichever Is Higher
• Quick And Accurate Measurement
• Interchangeable Load Cells
• Modulus Data For Load & Displacement (For Selectable Models With Software)
• Optional Dot Matrix Printer Interface
• Optional Windows Xp Based Software With Rs-232 Interface
• Simple Controls For Ease Of Operation.
• Safe Operation Ensured By Means Of Safety Devices.
• Simple Hand Operated Mechanism
• Optional Automatic Computerized Operation With Drive & Motor Available
