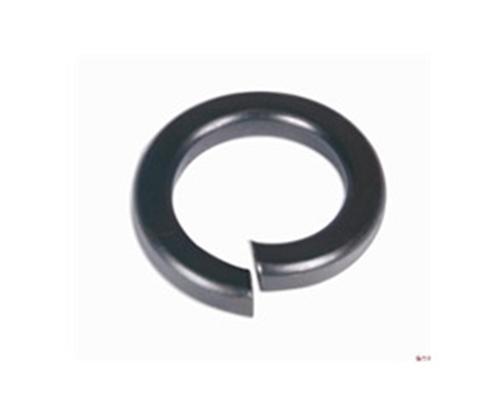

Spring Washer, Material : Metal

We are offering spring washer.
A split washer or a spring lock washer is a ring split at one point and bent into a helical shape. This causes the washer to exert a spring force between the fastener's head and the substrate, which maintains the washer hard against the substrate and the bolt thread hard against the nut or substrate thread, creating more friction and resistance to rotation.
Spring washers are a left hand helix and allow the thread to be tightened in a right hand direction only, i.e. A clockwise direction. When a left hand turning motion is applied, the raised edge bites into the underside of the bolt or nut and the part that it is bolted to, thus resisting turning. Therefore spring washers are ineffective on left hand threads and hardened surfaces. Also, they are not to be used in conjunction with a flat washer under the spring washer, as this isolates the spring washer from biting into the component that it is fastening. Where a flat washer is required to span a large hole in a component, a nyloc nut (nylon insert) must be used.
size: m6-m48
other sizes are available upon request
material: steel
grade: 4.86.88.810.912.9
finish: black oxidezinc plated (galvanized)hot dip galvanized (hdg)
other kinds of surface treatment are available upon request
technical info: din 127
