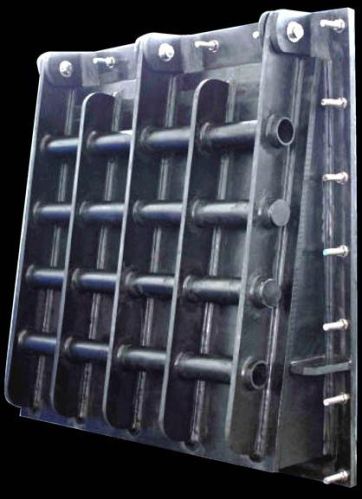

Square Flap Gate

Supply TypeExporter, Supplier
Preferred Buyer Location All Countries Except India

Designed for irrigation, tidal, flood and salt water intrusion control in agricultural applications, our Square Flap Gate is also suitable for water and waste water management.Benefits :Our easy to install Square Flap Gate is self-operational and built with corrosion-proof, impact and UV resistant materials. No protective coatings or lubrication required, very cost effective.Materials : Angle bracket : galvanized iron Empty pipe : high density polyethylene Counterweight pipe : high density polyethylene filled with concrete customized Square Flap Gate also available

View More Details

Send Enquiry

Product Details

Graph

Download Detail File : Click Here

Technical Specifications

MODEL	A	B	C	D	E	F	G	H	I	WEIGHT (KG)
1000 x 1000	1570	1420	255	321	5	1000	1000	2	19	109
1200 x 1200	1680	1500	259	348	5	1200	1200	2	21	132
1500 x 1500	2005	1815	290	492	5	1500	1500	3	22	239
1800 x 1800	2465	2200	375	580	5	1800	1800	3	28	321
2000 x 2000	2665	2415	380	608	5	2000	2000	3	30	402
