Squeeze-Eze Power Packs and Jaws

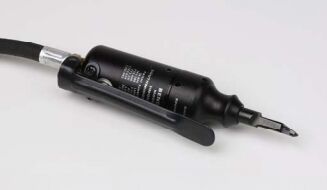

Air-powered cut and bend tool which cuts components on P.C. boards 116” above the surface and bends them over
tight to the board.
The tool is small (5 12” long x 1 14” diameter) and lightweight (8oz.). Constructed of durable aluminum. Maximum inlet
air pressure is 80 psi.
Seven interchangeable cut and bend heads are available for different diameter components with 20°, 30° or 45°
working angles. Heads are made from hardened tool steel and are easily replaceable. There are also four heads
available for shorter layover (132” max. layover) in 20°, 30° and 45° angles.
Special bend only models are also available. Consult factory for details. Cut and Bend Heads sold separate from power
packs
