Admiral Metal Polished Squidstat Plus Electrochemical Workstation

Squidstat Plus Electrochemical Workstation

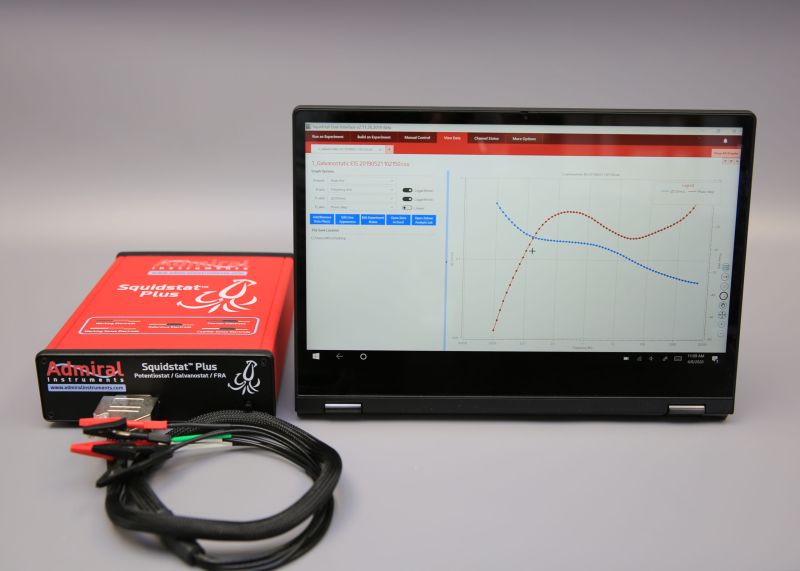

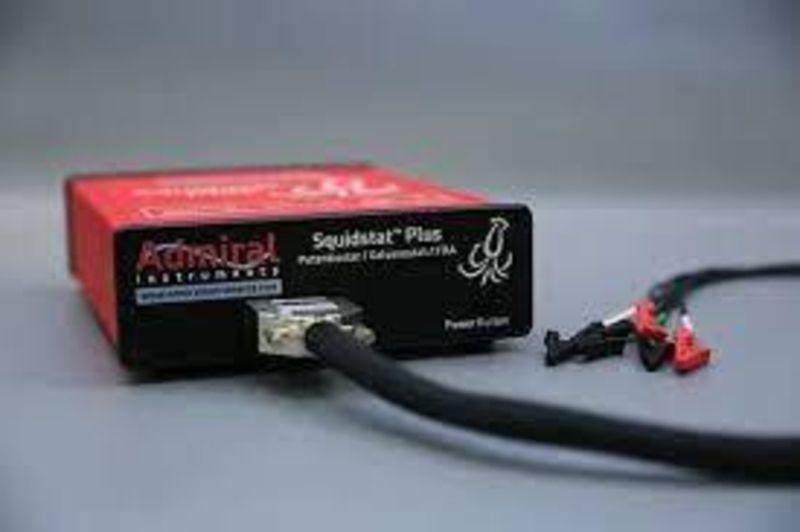

The Squidstat Plus, developed by Admiral Instruments, is a powerful yet compact potentiostat/galvanostat instrument with built-in electrochemical impedance spectroscopy (EIS) up to 2 MHz. It’s engineered for high-performance electrochemical analysis across research and industrial settings.

Key Highlights:

• High Current Capability: Supports up to ±1 A current range across eight precision ranges, enabling studies of energy systems like batteries and fuel cells

• Wide Potential Window: Voltage scan range of ±10 V (compliance up to ±12 V), suitable for a broad array of electrochemical techniques.
• EIS Performance: Frequency range from 10 µHz to 2 MHz, with high accuracy and fine resolution, supporting in-depth impedance measurements
• Compact and Lightweight: Dimensions of approximately 24 × 17 × 6 cm and a weight of around 0.9–1 kg, making it highly portable
• Reliable Data Storage: A generous 16 GB onboard memory automatically backs up all experimental data, safeguarding against accidental data loss
• Multi-Channel Expandability: Multiple Squidstat units can be controlled from a single computer to create scalable, multi-channel electrochemical setups.
• User-Friendly Software: The Squidstat User Interface (SUI) offers intuitive drag-and-drop experiment setup, real-time control of parameters like OCP, and seamless export of data to CSV

Ideal Applications Include:

Electrochemical studies involving batteries, fuel cells, corrosion testing, and sensor development. Also effective for general voltammetric analyses, cyclic voltammetry, chronoamperometry, and advanced impedance spectroscopy.
