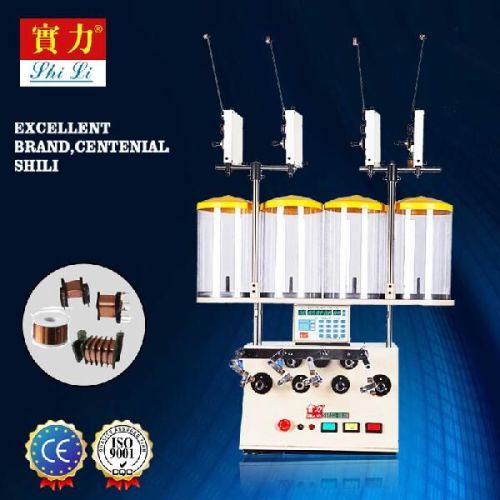

SRB23-4 CNC Automatic Winding Machine, Brand Name : SHILI

Machine feature:
this machineã¢â design of 32 bitã¢â controller chip,ã¢â itã¢ï¿½ï¿½ll be faster and higher reliability.inã¢â chinese and englishã¢â display,easy to operation,windingã¢â data retentionã¢â after power failure,ã¢â notã¢â to discarded productsã£ï¿½ï¿½all the parts for this machine are imported prats,such as:japan bearing (nskã£ï¿½ï¿½ntn),japan bando belt ã¯â¼ï¿½japan gates belt ã¯â¼ï¿½taiwan ball screw (tbi)ã¯â¼ï¿½taiwan transducers and so on.
Heavy body architecture, winding process to make products more stable, four synchronous design, high speed, low voice, small size, is the preferred product assembly line.
Function and featureã¯â¼ï¿½
ã¢ï¿½â using the latestã¢â synchronizationã¢â with theã¢â couplingã¢â cableã¢â controller.
Ã��â¡with selfã¢â detection,ã¢â includingã¢â setting error,ã¢â speedã¢â tracking and velocityã¢â calibration
ã¢ï¿½â¢optionalã¢â liftingã¢â speed of main spindle.
Ã��â£c. With ruler function can be easily measured width and kai winding around the point.
Ã��â¤d.startã¢â movingã¢â speed of theã¢â spindle motorã¢â toã¢â climb timeã¢â to decide by yourself.
application rangeã¯â¼ï¿½
ee transformer,ei transformer,stepping motor,relay,coil class,auto abs,switch power transformer and special products.
application rangeã¯â¼ï¿½
spindle number 4
wire size range 0.04-0.45mm
loop diameter 70mm
the max wire spacing 9.99mm
winder width 100mm
max speed 7000turnmin
spindle motor phase motor+ac drivers
winder motor stepping motor
input power 220vã¢â  50hz60hz
machine size 900ã£ï¿½460ã£ï¿½600mm
package size 980ã£ï¿½670ã£ï¿½680mm
net weight 105kg
gross weight 125kg
