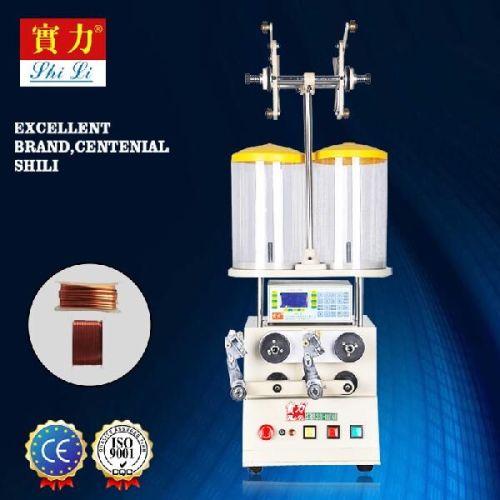

SRBX23-2 Expandable Mandrel For Coil Winding Machine

We are offering computer winding machine.
Machine feature:
this machine design of 32 bit controller chip, it will be faster and higher reliability.in chinese and english display,easy to operate, winding data retention after power failure, not to discarded products. All the parts for this machine are imported prats,such as:japan bearing (nsk, ntn),japan bando belt, japan gates belt, taiwan ball screw (tbi), taiwan transducers and so on.the machine uses the below winding design, miniature precision adjustment is more simple and easy, special winder structure design makes winding better. Two spindle synchronous design conform to customers around the relatively thick wire, machine design follow the high requirements.
Function and feature:
1.using the latest synchronization with the coupling cable controller.
2.with self detection, including setting error, speed tracking and velocity calibration.
3.optional lifting speed of main spindle.
4.with ruler function can be easily measured width and start point.
5.start moving speed of the spindle motor to climb time to decide by yourself.
Application range:
ee transformer,ei transformer,stepping motor,relay,coil class,auto abs,switch power transformer and special products.
Specifications:
spindle number 2
wire size range 0.1-1.2mm
loop diameter 80mm
the max wire spacing 9.99mm
winder width 100mm
spindle pitch 165mm
max speed 4000turnmin
spindle motor phase motor+ac drivers
winder motor stepping motor
input power 220v 50hz60hz
machine size 460*660*600mm
package size 540*730*580mm
net weight 70kg
gross weight 88kg.
