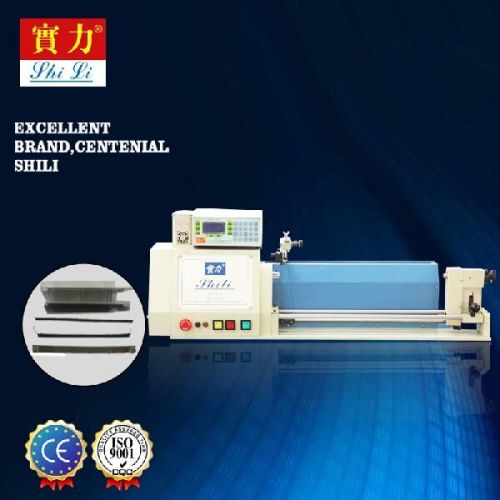

SRDZ23-1B Automatic Spring Coil Winding Machine Price

Machine feature:
professional winding various long type coil, two side spindle synchronous rotation, stable and reliable.this machine design of 32 bit controller chip, it’ll be faster and higher reliability.in chinese and english display,easy to operation,winding data retention after power failure, not to discarded products。all the parts for this machine are imported prats,such as:japan bearing (nsk、ntn),japan bando belt ，japan gates belt ，taiwan ball screw (tbi)，taiwan transducers and so on.
Main features:
① use high quality bearing steel, reinforced machine body, to ensure product stability.
② pull lever tail stock design,operation more faster and convenient.
③ adjustable wire shelf, to prevent loose wire. (optional)
application range：
mica sheet, heating wire, coil resistance and all the extended coil products.
specifications
spindle number 1
wire size range 0.05-1.0mm
loop diameter 140mm
max wire distance 9.9mm
winder width 520mm、600mm、1500mm
max. Speed 0-1500 turnmin
spindle motor phase motor+1hpac drivers
winder motor stepping motor
max. Winder diameter 80mm
input power 220v  50hz60hz
machine size 1130×450×450mm
package size 1110×510×610mm
net weight 95kg
gross weight 115kg
