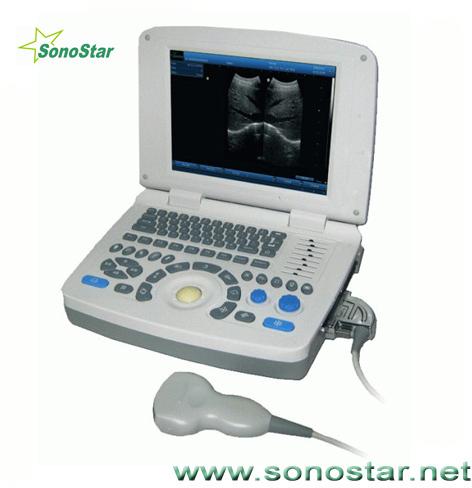

SS-10 Laptop PC Based Ultrasound B Scanner - 3d Image Optional

We are offering ss-10 laptop pc based ultrasound b scanner - 3d image optional.
download the catalog
feature:
·full digital and clear image
·pc based abundant and powerful functions
·complete application software packages
·10 inch non-interlaced lcd monitor
·broadband multi-frequency probes
·large volume hardisk storage, usb storage
·rj-45 ports for dicom network transmission
·compatible with laser/inkjet printers
·2 active probe sockets
·3d imaging function(option)
·outside battery(option)
specification:
-d-maximum scanning depth： 250mm
-multi-frequency: 5 segment frequencies
-zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-image gray scale: 256 level gray scale
-cine loop：1024 frames
-scanning mode: b, 2b, b/m, m, 4b, zoom;
real-time zoom on b mode
-image processing: pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, black/white inversion; gray scale adjustment, contrast, brightness, γ revision.
-gain: gain: adjustable between 0-100db; time gain control(tgc): 8 segment adjustment, b, m adjustment separately.
-monitor: 12 inch high definition lcd screen(ss-10a) or 10 inch lcd screen(ss-10b)
-supported output apparatus: u-disk, laser/ink printer, video printer, vga
-measurement and calculation(human):
b mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
m mode: heart rate, time, distance, slope and stenosis;
gynecology measurement: uterus, cervix, endometrium, l/r ovary;
obstetric: gestation age, fetal weight, afi;
cardiology: lv, lv function, lvpw, rvawt;
urology: transition zone volume, bladder volume, ruv, prostate, kidney;
small parts: optic, thyroid, jaw and face.
-dimension: 300×230×60mm
-probe connector：2
-weight: around 2.3kg
