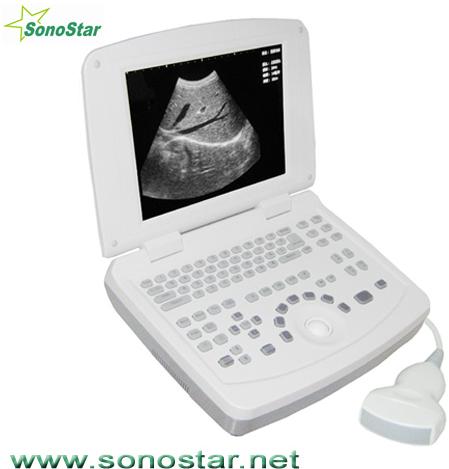

SS-3 Laptop Ultrasound B Scanner

Ss-3 is characterized by its excellent image quality with high resolution power, smart body, and strong functions. it can be widely used in abdomen, gynecology, small parts, vascular, urology, prostate, cardiology and pediatric intervention. it also can be used in animals.
feature:
·high cost-effective
·crystal clear image
·usb flash disk storge
·10 inch non-interlaced lcd monitor
·silica gel control panel
·broadband multi-frequency probes
·output: vga, video, usb
·outside battery(option)
parameters:
scanning method: electronic convex and linear array
display mode: b b/b b/m m 4b
scanning depth: ≥242mm
gray scale: 256
magnification: ×0.8、×1.2、×1.5、×1.8
resolution power: lateral 1mm longitudinal 1mm
contrast: 1200: 1
depth upgrading: b b+b mode of upgrading
transducer frequency conversion: 2.5 、3.0 、4.0、 4.5mhz
terminal output: pal-d、vga
usb ports: 1
storage: 324
pseudo-color function: built-in
transducer connector: 3.5 mhz convex array
gain: 0 - 99 db
near gain: 0 - 40 db
far gain: 0 - 40 db
standard configuration:
main unit
convex array probe(3.5mhz)
5p-2 power adapter
lithium battery
usb cable
optional:
high-frequency linear array probe(7.5mhz)
tv probe(6.5mhz)
micro-convex probe
car charger
