Deep Gulvnized Painted Metal SS Grating through Channel for Industrial

I couldn’t locate any clear, public technical documentation specifically titled “Sandhyaflex SS Grating through Channel” from Sandhya Enterprises. It might be a custom product or variant of their SS (stainless steel) grating combined with a channel/trough.

I can, however, pull together what a typical “SS grating through channel” product would require, what specs to ask for, and how Sandhyaflex or similar manufacturers might supply it. If you like, I can try to find a vendor who supplies exactly that, with drawings / price.

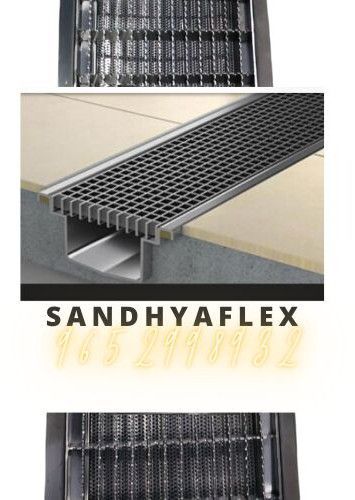

What “SS Grating Through Channel” likely means

• SS = Stainless Steel (grade like SS304 / SS316 etc.), used for corrosion resistance, hygiene, aesthetics.

• Grating = the top cover or grate which allows water / fluids to pass through into the channel.

• Channel (or trough) = the body beneath the grating, usually cast-in or inserted into floor/slab, which channels the water to an outlet.

So “SS Grating through Channel” likely refers to a drainage channel system where the channel is fitted with a stainless steel grating cover.

What specs to define / ask when ordering

To get the correct product, you should define:

1. Channel Dimensions

   • Width (clear opening)

   • Depth of channel (internal)

   • Overall height (floor finish + channel + grating)

2. Grating Spec

   • Material grade (SS304, SS316 etc.)

   • Bar size / slot pattern / mesh / perforations (i.e. how large are openings)

   • Thickness of grating bars

   • Whether grating is hinged / removable / bolted

3. Load class (pedestrian / vehicular / heavy traffic)

   • Determines strength of channel body & grating

4. Channel body material and finish

   • If SS, same material as grating, or mild steel body with SS grating cover?

   • Finish: polished, matt, brushed, etc.

5. Outlet position & size

   • Where the water exits the channel (end / side / bottom)

   • Diameter of outlet

6. Slope / gradient

   • To ensure proper drainage

7. Fixing / anchoring

   • How does the channel sit / fix to floor slab or structure

   • Sealing between channel wall and slab

8. Maintenance access

   • Removable grating

   • Clean-outs

9. Standards / certifications

   • Relevant IS / ASTM / EN standards for stainless steel, drainage channels etc.

What Sandhyaflex products close to this kind of product do

Based on what I found, Sandhya / Sandhyaflex offers:

• Drainage spouts (Mild steel / galvanized) with MS bodies. (
