100-1000kg Electric Vibro Sifter Machine, Certification : CE

Name: Vibro Sifter Machine
Price: 65000 INR
Availability: InStock

Company Information

Ask for more detail from the seller

Report incorrect details

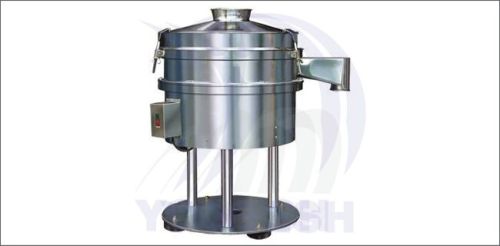

The vibro sifter machine is a portable type compact machine available in different models.

THE FEATURES :

High speed, noise less machine.
The contact parts and screen are made of S.S. 304 AISI stainless steel material.
S.S. 316 quality parts can be provide on demand
Double and triple deck screens with outlet and hopper for the bottom deck can be provided on demand.
Easy dismantling
Easy cleaning
Low maintenance
Low power consumption

TECHNICAL SPECIFICATION :

MODEL	APM-VS 20”	APM-VS 30”	APM-VS 36”
Screens	SS 304 (SS 316 Optional)	SS 304 (SS 316 Optional)	SS 304 (SS 316 Optional)
Screen Dia.	500 mm.	750 mm.	914 mm.
Capacity/Hour *	20 to 200 Kg.	30 to 300 Kg.	30 to 325 Kg.
Charging height	1200+ 5 mm without Lid 1430+ 5 mm with Lid	900+ 5 mm without Lid 1220+ 5 mm with Lid	900+ 5 mm without Lid 1220+ 5 mm with Lid
Discharging height	720 + 5 mm.	735 + 5 mm.	735 + 5 mm.
Electric Motor	0.25 HP / 1440 RPM / 3 Ph.	0.5 HP / 1440 RPM / 3 Ph.	1 HP / 1440 RPM / 3 Ph.
