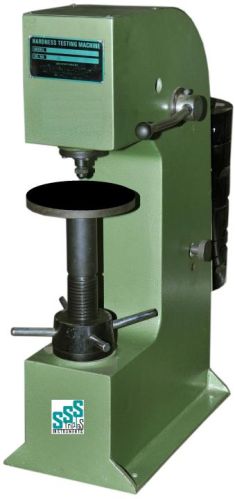

Electric SSS-B-3000-J Brinell Hardness Testing Machine

₹ 1.50 Lakh - ₹ 7 Lakh / Piece

Driven TypeElectric
Display TypeMechanical
Power1-3kw
Automation GradeManual / Hydraulic
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.4/5

Member Since 13 Years
Nature of Business Manufacturer
GST No. 27CNCPS2469E1ZT

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ApplicationTesting Material
Display TypeMechanical
Country of Origin220V / 380V
Power1-3kw
Driven TypeElectric
Automation GradeManual / Hydraulic
Total Carbohydrate1year
Weight100-200kg
Model No.SSS-B-3000-J

Designed for testing the Brinell Hardness of metals and alloys, the Brinell Hardness Testing Machine is of vital importance in industrial sector. We bring for the high-grade Brinell Hardness Testing Machine for clients across the globe. We are named amidst the prominent Brinell Hardness Testing Machine Manufacturers, Exporters, and Suppliers in Maharashtra (India).

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

PDF

Download Detail File : Click Here

Technical Specifications Of Brinell Hardness Testers

MODEL	UNIT	SSS-B-3000(J)	SSS-B-3000(H)	SSS-B-3000(O)
LOADS	--	500, 750, 1000, 1500, 2000, 2500, 3000	500 TO 3000 IN STAGES OF 250	500 TO 3000 IN STAGES OF 250
INITIAL LOAD	KGF	NIL	250	NIL
MAX. TEST HIGHT.	MM.	254	410	380
DEPTH OF THROAT	MM.	150	200	200
MAX.DEPTH OF ELEVATION SCREW BELOW BASE	MM.	180	180	180
SIZE OF BASE	MM.	255X495	370 X 670	370 X 670
MACHINE HIGHT	MM.	680	1127	1205
NET WEIGHT	KG.	205	450	505
DRIVE MOTOR	HP	NIL	0.33	0.33
MAIN SUPPLY	V/CY/PH	NIL	400-440/50/3	400-440/50/3
OTHER FEATURE	--	NIL	NIL	DIRECT READING OPTICAL DEVICE WITH 14X MAGNIFICATION

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Standard Accessories

MODEL	SSS-B-3000(J)	SSS-B-3000(H)	SSS-B-3000(O)
TESTING TABLE 50MM DIA.	1 PC	NIL	NIL
TESTING TABLE 200 MM DIA.	NIL	1 PC	1 PC
TESTING TABLE 70 MM ∅ WITH 'V' GROOVE FOR ROUND JOBS-10 TO 80 MM DIA	1 PC	1 PC	1 PC
BALL HOLDER 05 MM	1 PC	1 PC	1 PC
BALL HOLDER 10 MM	1 PC	1 PC	1 PC
TEST BLOCK HB-10/3000	1 PC	1 PC	1 PC
BRINELL MICROSCOPE	1 PC	1 PC	1 PC
ALLEN SPANNER	1SET	1SET	1SET
INSTRUCTION MANUAL	1 BOOK	1 BOOK	1 BOOK
