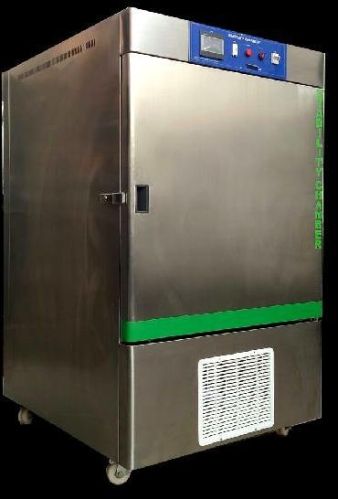

Stability Chamber GMP Model (PLT-258)

APPLICATIONS OF STABILITY CHAMBER GMP

“T ANCO” brings the ultra-high-tech Stability Chamber Microprocessor controlled designed as per ICH GUIDELINES for various stability and shelf life tests on Pharma, Bulk Drugs, Drug Substances, Biomedical, Healthcare, Food Products, Biotech etc.
These are widely used for confirmatory studies for direct comparison of drug substance under controlled environmental conditions.

SALIENT FEATURES & CONSTRUCTION OF STABILITY CHAMBER GMP

Robust construction outer & inner chamber is made of ST AINLESS STEEL SHEET (304 Grade).
Fitted with durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
Inner chamber has SS angels for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
High grade PUF INSULA TION between outer and inner chamber for minimal thermal losses.
Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
Heating is done by indirect heating system by air heaters made of stainless steel placed in the path of moving air in the chamber.
Temperature Range. T emperature ranges of our Stability Chamber models are 200C to 600C.
Temperature controlled by microprocessor based temperature controller having LED display with an accuracy of +10C fitted with PT-100 sensor (Resolution 0.10C)
Humidity System: Humidity is generated by steam injection system consist of boiler tank, placed below the chamber fitted with boiler heater.
Humidity Range: 50% of 90% & controlled by mean of an electronic humidity controller cum indicator with an accuracy of + 3 to 5%RH.
Control panel having all controls and circuitry are housed at the top fitted with T emperature controller cum Indicator Microprocessor based with LED display for Set V alue (SV) & Process V alue (PV) to select any desired temperature & humidity controller cum indicator provided with Volt meter on the panel to read the incoming voltage.
Caster wheel mounted for easy portability.
Supplied with cord and plug.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS OF STABILITY CHAMBER GMP

Model No.	SCG-4	SCG-6	SCG-10
Usable Space in mm	610 X 450 X 410	845 x 500 x 400	870 x 570 x 560
Capacity	4 Cuft.	6 Cuft.	10 Cuft.
Approx Volume	113	173	282
No. of Shelves	2	2	3
Temperature Range	20^°C to 60^°C (Resolution 0.1^°C)
Temperature Controller	By Microprocessor Based PID Digital T emperature Indicator
Temp. Accuracy	±1^°C
Humidity Range	50% to 90% at cool temperature
Humidity Accuracy	±3 to 5%RH.
Display	LED Display
Relay	Solid state electronic relay with protective heat sink.
Air Circulation	By forced convection system
Insulation	By High density PUF insulation
Operations	Nearly silent operation with ultra-low vibration
Voltage Indicator	By Volt Meter fitted on Panel
High Voltage Protection	Through automatic voltage stabilizer (Optional)
Electric Supply	220/230V AC, 50/60Hz

OPTIONAL FEATURES OF STABILITY CHAMBER GMP

PLC Based Control Systems	With T ouch Screen Display with Direct Thermal / Dot Matrix Printer.
LCD Controller with Data Logger	(16 x 2) with optional RS-485 communication ports, cables, window based software with inbuilt data recording.
Communication Port	Communication Port with interface and data cable to download data to your PC.
HMI Panel	Touch screen controller PLC based with or without SMS alert
Regulated Voltage	By Voltage Stabilizer Automatic
