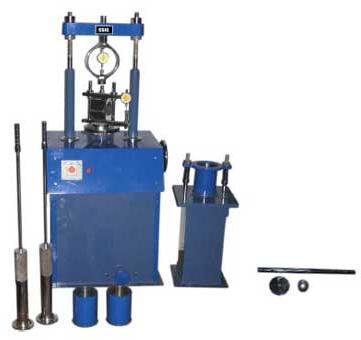

Stability Test Apparatus is used to test the stability of cylindrical specimen of bituminous paving mixture loaded on the lateral surface. The Stability Test Apparatus is used for the hot mixture containing asphalt or tar and aggregate upto 25.4mm. We are a name of repute in manufacturing and supplying Stability Test Apparatus of superior quality at reasonable rates.
Components
Mar shall Load Frame comprising of body housing, a geared screw jack and motor driven mechanism and having capacity of 50KN. The rate of travel is 50.8mm/min. and is duly fitted with auto cut off switch.Breaking head Stability Mould with dial gauge.01 x 25mm travelCylindrical Compact ion Mould made of M.S complete with base plate and extension collarCompact ion Pedestal: It consists of a M.S plate capped on a wooden post. A mould Clamp is fitted to the top of the plateCompact ion Hammer weighs 4.5Kg with a free fall of 457mmLoad Transfer bar supplied complete with proving ring of 25KN
Suitable for
Operation on 220V, 50HZ, Single Phase, A.C supply
Used by
Highway departmentsContractorsEngineersTesting laboratories
