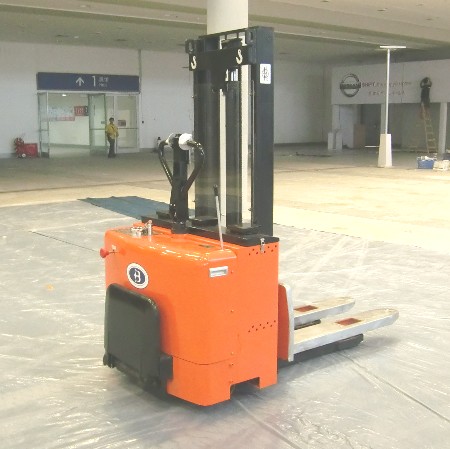

Stacker Machine

Product characteristics and applicability of cbdb stacking trucks with explosion-proof battery.
1.cbdb stacking trucks with explosion-proof battery are widely used in petroleum,chemical industry,military,textile,warehouse, the paint,pharmaceutical and other industries with contain flammable gas,liquid in and other explosion environment of 1division,2division.
2.imported italian sea general pump station,and make the goods lifting smooth powerful.this power unit set dc motor,gear pump,valve and pipe components in a body of.with small size,high reliability and steady,energy saving,noise reduction,environmental protection and other advantages.
3.imported italian marotta the drive wheels,configuration of the disc brake system,reliable strong power and stable performance.
4.import electronic control system reaction intelligent,easily manipulated,high reliability,has the regenerative braking,reverse connect braking and stepless speed regulation,and other functions.
5.retrofited explosion protection safety valve,it can be in hydraulic hose once failure cases goods will not fall quickly,ensure that operating personnel security of person
6.the large capacity of batteries,charging convenient and quick,lasting power
7.imported germany door frame channel steel,strong and security.
specifications: (according to different type)
nominal load capacity: 1000~2000kg
load center distance: 600mm
hoisting height: 156mm
goods fork to lowest lever: 86mm
goods fork length: 1150mm
maximum lifting height: 2500~2900mm
body minimum ground clearance: 26mm
maximum turning radius: 1540mm
lift speed: 105/150, 91/128, 90/120, 560/600 mm/s
vehicle dimension: 1990*1005*1950mm (l.w.h)
maximum climbing ability: 6/12, 5/7 %
motor brake: embr
drive motor power,voltage: 1.2/24kw
promote motor power,voltage: 2.2/24kw
explosion-proof power supply device: 24/210 v/a*h
weight: 950~1120 kg
packaging according to your requirement
