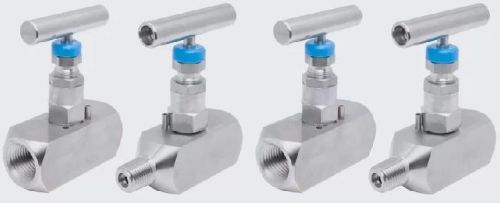

Stainless Steel 310 Needle Valve, Design : Integral Bonnet Design

DesignForged Body with Inline/Straight or Angle Pattern, Integral Bonnet Design
Size1/4″ to 1″ (Female / Female BSP and BSPT), 3/8″ to 1″ (Female / Female NPT) and 1/4″ to 1/2″ (Male / Female BSPP).
ThreadNPT, BSPP, BSPT, JIC, METRIC, UNF
Equivalent BrandsSwagelok, Parker, Dk-Lok, Hamlet, Oliver Valves, Hoke
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Product Details

Size1/4″ to 1″ (Female / Female BSP and BSPT), 3/8″ to 1″ (Female / Female NPT) and 1/4″ to 1/2″ (Male / Female BSPP).
DesignForged Body with Inline/Straight or Angle Pattern, Integral Bonnet Design
ConnectionThreaded, Tube End, Butt Weld, Socket Weld, Weld Nipple, Flanged, Sae
Function2 Way, 3 Way
Orifice Size2 MM TO 9.5 MM
PatternsStraight / Angle
Equivalent BrandsSwagelok, Parker, Dk-Lok, Hamlet, Oliver Valves, Hoke
Pressure Rating1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
Needle Valve TypeBar Stock Needle Valve, High Pressure Needle Valve, Angle Needle Valve, Union Bonnet High Pressure Female X-Female NPT, Miniature Needle Valve, Screwed Bonnet Needle Valve, Forged Needle Valve
ThreadNPT, BSPP, BSPT, JIC, METRIC, UNF
Maximum Working PressureUp to 6000 psig (413 bar)
StandardISO , DIN , ANSI , API , ASME , AWWA , MSS
