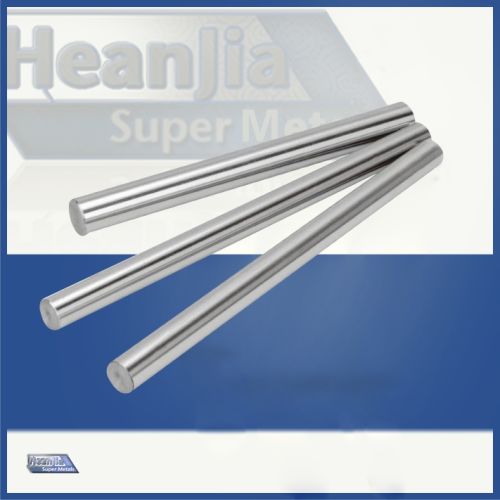

Stainless Steel 310S Rod, Brand Name : Heanjia

We offer Stainless steel 310S Rod.
The stainless steel grade 310S Rod is a moderate austenitic stainless steel widely used in the elevated temperature operations like furnace components and heat processing systems. It is less inclined to embrittlement and sensitization while in operation and commonly used in the cryogenic applications for its hardness and lower magnetic permeability.
Specification
Rod Size diameter: 3mm above, length: 20mm above
Chemical composition of Stainless Steel 310S Rod
Carbon 0.25 max 0.08 max
Silicon 1.50 max 1.50 max
Manganese 2.00 max 2.00 max
Phosphorus 0.045 max 0.045 max
Sulphur 0.030 max 0.030 max
Chromium 24.00 - 26.00 24.00 - 26.00
Nickel 19.00 - 22.00 19.00 - 22.00
Mechanical Properties of 310310S Stainless Steel Rod
Grade 0.2 % Proof Stress MPa (min) 205
Tensile Strength MPa (min) 520
Elongation % (min) 40
Hardness (HV) (max) 225
Physical Properties of 310310S Stainless Steel Rod
Density 8,000 Kgm3
Electrical Conductivity 25°C 1.25 %IACS
Electrical Resistivity 25°C 0.78 Micro ohm.m
Modulus of Elasticity 20°C 200 GPa
Shear Modulus 20°C 77 GPa
Specific Heat 500 Jkg.°C
Characteristics of Stainless Steel 310S Rod
1.Excellent tensile strength
2.Hardness
3.Superior resistance to oxidation and corrosion
4.Readily formed for welding
Applications of Stainless Steel 310S Rod
1.Furnaces
2.Carburising boxes
3.Heat Exchanging equipments
4.Oil Burners
