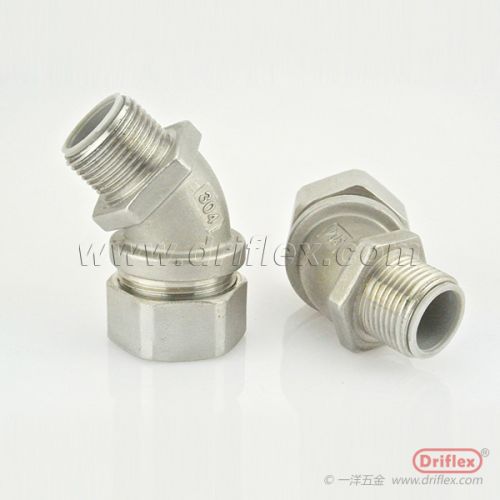

Stainless Steel 45d Connector

We are offering Stainless Steel 45d Connector.
1.Structure:
Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANSASME B1.20.1-1983, Comply with stands ASNZS 2053. 8, hexagonal pressure nut, sealing ring and ferrule.
2.Material:
�Connector body - Galvanized die casting,zinc plated steel& malleable iron, nickel plated brass, stainless steel.
�Hexagon pressure nut - Galvanized die casting zinc plated steel& malleable iron,nickel plated brass, stainless steel.
�Sealing ring - Nylon 66
�Ferrule - Galvanized steel or stainless Steel.
3.Features:
�Simple, one piece installation provides a quick and reliable liquid-tight seal
�IP rating from IP40 to IP666768 in combination with the corresponding flexible conduits
�High mechanical strength
�Highly liquid-tight and dustproof
�Vibration and tensionproof
�Inherently low fire hazard
�Covering of the conduit ends
�Available in straight, 45o and 90o bodies
�Available in ISO Metric and NPT ,PF,PG,BSP etc. threads
4.Applications:
�General indutrial and commerical electrical wiring protection
�Machining centres and robotics
�any narrow space in static applications
�General wiring for OEM applications
�Low fire hazard applications
�Underflooring wiring in office buildings
�Machine tools
�Installations where liquid-tight is a requirement
�Outdoor installation
