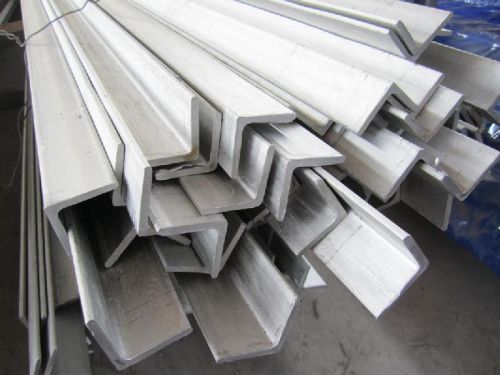

Stainless Steel Angles Bars

Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

It is a hot rolled angle shaped product available with equal & unequal size. Inner corner radius increase strength to the shape. S S angles are most suitable for structure application that require strength & excellent corrosion resistance Stainless Steel Angles Bar has a dull gray mill finish & is used in all types of fabrication projects exposed to corrosive environment such as acidic fresh & salt water environmentsApplications: Agro Industries Food Industries Chemical Industries Petro Chemical( Industries Gas & Refineries Available in : 304,304L , 316

View More Details

Send Enquiry

Technical Specifications

Material	Stainless Steel
Grade	202, 304, 304L, 316, 316L, 317L, 321, 316 Ti, 309, 310, 904L, 410, 420, 430, 431, etc.
Standard	ASTM / ASME A/SA 240
Form	Roll-formed metal
Angle	Varied, most commonly 90 degree
Leg	Two of same length
Size	3 / 4/5 / 6 x 25 x 25 3 / 4/5 / 6 x 30 x 30 3 / 4/5 / 6/7 x 40 x 40, 4 / 5/6 x 50 x 50 4 / 5/6 /8 x 60 x 60 5 / 6/7/ 8 x 70 x 70 6 / 7/8/10 x 75 x 75 6 /8/ 10 / 12 x 80 x 80 8/ 10/12 x 100 x 100

Specification

Size (mm)	Size (inch)	Thickness (mm)	Thickness (in Inches)
25 x 25	1" x 1"	3, 4, 5	1/8", 1/6", 1/5"
30 x 30	1 1/6 x 1 1/6	3, 4, 5	1/8", 1/6", 1/5"
32 x 32	1-1/4" x 1-1/4"	3, 4, 5	1/8", 1/6", 1/5"
35 x 35	1-3/8 x 1-3/8	3, 4 , 5	1/8", 1/6", 1/5"
40 x 40	1-4/7" X 1-4/7"	3, 4, 5, 6	1/8", 1/6", 1/5", 1/4"
50 x 50	2" X 2"	4 , 5, 6	1/6", 1/5", 1/4"
60 x 60	2-3/8" X 2-3/8"	5, 6	1/5", 1/4"
63 x 63	2-1/2" X 2-1/2"	5, 6	1/5", 1/4"
65 x 65	2-5/9" X 2-5/9"	5, 6	1/5", 1/4"
70 x 70	2-3/4" X 2-3/4"	6, 7, 8, 9, 10	1/4", 9/32", 5/16", 3/8",2/5"
75 x 75	3" X 3"	6, 7, 8, 9, 10	1/4", 9/32", 5/16", 3/8", 2/5"
80 x 80	3-1/8" X 3-1/8"	6, 7, 8, 9, 10	1/4", 9/32", 5/16", 3/8", 2/5"
