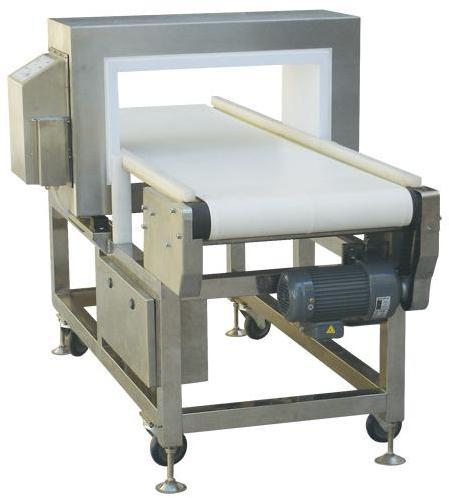

Stainless Steel Auto-conveying Metal Detector

We are offering stainless steel auto-conveying metal detector.
the electronic and mechanism design of the series of ejh auto-conveying metal detector is adopted advanced technique in the world, the design is suitable and the appearance is beautiful ejh-14 owns the ability of high sensitivity and stable behavior
scope of application:
ejh-14 is mainly used for detecting the metal chips inside the sea-food , fishery, noodle, frozen food, sugar, tea, pharmaceutical products etc.
product characteristic :
1: stainless steel shell , anti-erosion and long life span .
2: the conveyor belt is made of nonpoisonous material
3: strong transport drive, all the products below 25kg can be conveyed to be checked.
4;quick convey speed, it is specially suitable for pipeline operation.
5: when sensor detect a broken needle or over a diameter 0.8mm iron ball, buzzer will sound and conveyor belt will stop. After that, detected products will be return at hand.
6:the performance of the belt conveyer is complied with the american food sanitation standard (fda), it can be used for transporting the unpacked food directly.
7: can match the pipeline operation or automatic control device.
technical parameters:
1.inspection window size:
normal height of inspection window(mm): 120
normal width of inspection window(mm): 500
the measures of the inspection window which can be designed according customer’s requirement.
2: sensitivity: diameter of 0.8 mm steel ball, weight of 1.2-1.5g lead, copper and other globular metal parts
3: electrical source: 220v 50hz
4: power : 120w
5: alarm: audible and visual alarm, automatic stop
6: normal size(mm): 1740(l)x900(w)x1030(h)
7: gross weight: approx 370kgs net weight: around 310kgs.
