Stainless Steel / Carbon Steel Remote Mounting Manifold Valves

Get Latest Price

MaterialStainless Steel / Carbon Steel
Drain1/4" NPT
Standard Process Connection1/2" NPT
Maximum Working Pressure400 bar/ 6000PSI
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Instrumax Enterprises

Goregaon, Mumbai, Maharashtra

View Number

Member Since 11 Years
Nature of Business Retailer
Year of Establishment 2010

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialStainless Steel / Carbon Steel
Standard Instrument Connection1/2" NPT
Drain1/4" NPT
Maximum Working Pressure400 bar/ 6000PSI
Gland PackingPTFE
Maximum Temperature240 Degree Cel
Standard Process Connection1/2" NPT

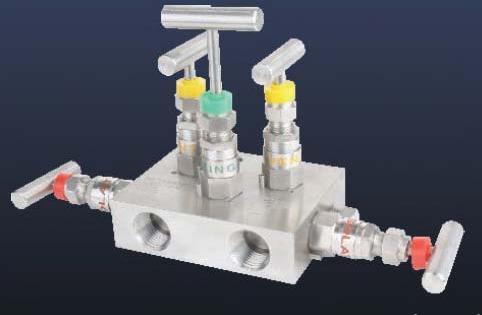

We are offering remote mounting manifold valves,
these manifolds are designed for remote mounting on instruments using threaded instruments & process connections. These valves are having two isolation, one equalizer & two vent calibration valves. The standard process and instruments connection are 12" npt. Two vent connections are 14" npt in all manifolds and are provided with blanking plugs. The instrument connections are positioned at 54 mm center distances but can easily be used with instruments other then 54 mm c.d via screwed fittings.
