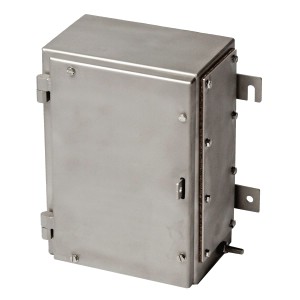

Stainless Steel Enclosures, Width : 114

The SX range comprises 14 sizes of enclosure manufactured in either mild steel or stainless steel. Depending on the enclosure size they are available in standard depths of 140, 200 or 300mm and can be fitted with removable gland plates on any or all of the four sides.
The SX range was specifically designed to meet the rigours of the offshore environment. With a high level of ingress protection (IP6667), the SX has also passed the ShellERA deluge test which was devised to adequately test enclosures and electrical equipment which is routinely subjected to ships decks conditions or fire deluge systems.
IP68 enclosures are also available for depths up to 120ft 35m depending on specifc customer requirements.
The stainless steel range (SSX) is manufactured in 316 grade stainless steel to give the maximum environmental protection. The main body is manufactured from 2mm thick sheet and the mounting straps and gland plates from 3mm thick plate. Cable entries can be drilled in the sides or through the gland plates, if fitted, or through the enclosure wall. Entries may also be drilled through the rear face of the enclosure.
Another advantage of the SX range is that it is suitable for fire resistance applications and when fitted with ceramic terminals meets the requirements of IEC 331 (750°C for 3 hours) and also BS63871983 (950°C for 3 hours).
Designed for simple installation and ease of use, the enclosure door is held to the enclosure by at least 4 captive stainless steel screws. These maintain the correct compression on the gasket. The oversize hinge design enables the screws to control the closing of the door, not the hinge, its only function being to support the door when opened. The hinges allow easy removal of the door with only minimal opening required before removal (less than 10°).
The SX range can be constructed to almost any dimension and the certification allows oversize enclosures to be manufactured whilst retaining the next smallest sized enclosures’ power rating.
Earthing is accomplished by means of an externalinternal earth stud fitted as standard which can be connected to the terminal mounting rail or component mounting plate and optionally earth studs can be fitted to the door and gland plates.
Rail mounted earth terminals or proprietary earth bars can be fitted inside the enclosure.
The SX has a wide ambient emperature range from -70°C to 130°C and is suitable for use in hazardous areas including: ATEX and IECEx Ex ‘e’(Zone 1 & 2), Ex ‘nA’ (Zone 2), CSA, UL & FM (Class 1, Div 2) and NEMA 4X.
The SX range can be supplied fitted with any component approved terminal to apparatus level or can be supplied empty as component approved for the clients own certification requirements
