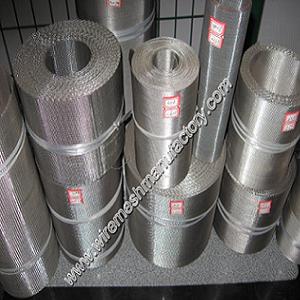

Stainless Steel Filtration Mesh 0.05-0.50mm., Brand Name : glory

stainless steel filtration mesh.
For weaven types have stainless steel plain dutch wire mesh and stainless steel twilled dutch mesh .
the filter mesh must be keep the very good mesh can filtering separation well , we used the imports reeds of germany for woven , the mesh or hole is smooth and beautiful .the material have ss 304, 304l, 316, 316l .
the weaving type: plain weave, twill weave,
the woven mesh width : 0.5m-1.5m
packing: water-proof paper ,woven bag ,wooden box and also can be made as per client requirement.
plain dutch weave: woven as a plain weave. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal plain weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.
mesh count ( warp x weft) wire dia mm (warp x weft) micron rating
8 x 85 0.360 x 0.320 320-340
12 x 64 0.580 x 0.420 265-285
24 x 100 0.350 x 0.250 115-125
14 x 88 0.500 x 0.350 215-235
30 x 150 0.230 x 0.180 95-100
40 x 200 0.180 x 0.140 70-75
50 x 250 0.140 x 0.114 55-60
80 x 400 0.125 x 0.071 40-45
dutch twilled weave:each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal twill weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking cloth thickness
mesh wire dia. (mm) microns material(aisi)
80meshx700mesh 0.102/0.070 0.043 304 or 316
165meshx800mesh 0.071/0.041 0.037 304 or 316
150meshx800mesh 0.069/0.053 0.035 304 or 316
200meshx600mesh 0.053/0.046 0.030 304 or 316
