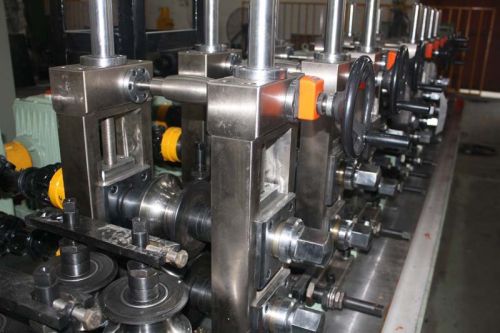

Stainless Steel Flexible Industrial Welded Tube Making Machinery

We are offering stainless steel flexible industrial welded tube making machinery.
Industrial stainless steel pipe machine:
application: mainly used for the production of industrial stainless steel pipe.
1. Process pipe diameter: 8-219mm
2. Process pipe thickness: 0.5-5.0.
3. As the mature technology of stainless steel welded pipe, seamless pipe has been replaced in many areas, such as chemical, pharmaceutical, brewery, oil, food, automotibe, paper and air conditioning industry.
4. Automated production process: the open book, cleaning equipment, feed direction, forming, welding, weld the entire inner peace, oter weld grinding, shaping sizing, solution treatment, the final sizing, straightening, testing, marking, set feet, cut off (coil), the materials such as continuous molding process.
5. Certificate: all the machines has the certificate of iso9001:2008.
6. Warranty: we provide one year warranty (man-made damage without insurance, the vulnerability of non-insurance).
7. Machinery main components: open book machine (uncoiler), forming welding machine, grinding machine, sizing machine, frame straightening, cutting machine, finished frame.
technical parameter：
model horizontal axles(mm) vertical axles(mm） diameter range(mm) thickness(mm） main motor power size of machine(l*w)(m)
bg-g40 40 25 ¢8-¢51 0.5-2.0 fornt7.5kw rear5.5kw 29*1.5m
bg-g40 50 30 ¢25-¢63 0.5-3.0 fornt11kw rear7.5kw 32*1.5m
bg-g60 60 40 ¢50-¢114 0.6-3.5 fornt15kw rear15kw 32*1.8m
bg-g80 80 50 ¢89-¢168 1.0-4.5 fornt18.5kw rear18.5kw 40*2.5m
bg-g100 100 60 ¢114-¢219 1.0-5.0 fornt22kw rear22kw 43*3.0m
main components of the production: uncoiler、forming and welding unit、grinding unit、sizing unit、straightening racks、cut off machine、end- product shelf
