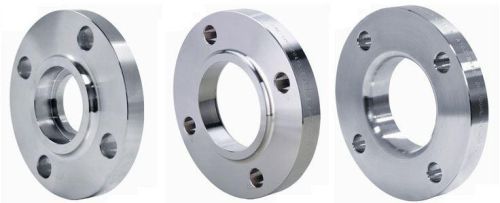

Stainless Steel Lap Joint Flanges

Lap Joint Flange StandardsANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Lap Joint Flange Flange Face TypeFlate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Lap Joint Flange BSBS4504 , BS4504, BS1560, BS10
Lap Joint Flange DimensionsANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Product Details

Lap Joint Flange Size1/8″ NB TO 48″NB.
Lap Joint Flange DINDIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
Stainless Steel GradesASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L
Lap Joint Flange StandardsANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Lap Joint Flange ANSIANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
Lap Joint Flange DimensionsANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Lap Joint Flange Class150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Lap Joint Flange Flange Face TypeFlate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Lap Joint Flange BSBS4504 , BS4504, BS1560, BS10

ASTM A182 GRADE	C	Mn	P	S	Si	Ni	Cr	Mo	Nb	Ti	Others
ASTM A182 Stainless Steel Lap Joint Flanges Materials Composition, %
F304(1)	0.08	2.0	0.045	0.030	1.0	8.0-11.0	18.0-20.0
F304H	0.04-0.10	2.0	0.045	0.030	1.0	8.0-11.0	18.0-20.0
F304L(1)	0.030	2.0	0.045	0.030	1.0	8.0-13.0	18.0-20.0
F304N(2)	0.08	2.0	0.045	0.030	1.0	8.0-10.5	18.0-20.0
F304LN(2)	0.030	2.0	0.045	0.030	1.0	8.0-10.5	18.0-20.0
F309H	0.04-0.10	2.0	0.045	0.030	1.0	12.0-15.0	22.0-24.0
F310	0.25	2.0	0.045	0.030	1.0	19.0-22.0	24.0-26.0
F310H	0.04-0.10	2.0	0.045	0.030	1.0	19.0-22.0	24.0-26.0
F310MoLN	0.030	2.0	0.030	0.015	0.40	21.0-23.0	24.0-26.0	2.0-3.0			N 0.10-0.16
F316	0.08	2.0	0.045	0.030	1.0	10.0-14.0	16.0-18.0	2.0-3.0
F316H	0.04-0.10	2.0	0.045	0.030	1.0	10.0-14.0	16.0-18.0	2.0-3.0
F316L(1)	0.030	2.0	0.045	0.030	1.0	10.0-15.0	16.0-18.0	2.0-3.0
F316N(2)	0.08	2.0	0.045	0.030	1.0	11.0-14.0	16.0-18.0	2.0-3.0
F316LN(2)	0.030	2.0	0.045	0.030	1.0	11.0-14.0	16.0-18.0	2.0-3.0
F316Ti	0.08	2.0	0.045	0.030	1.0	10.0-14.0	16.0-18.0	2.0-3.0		(3)	N 0.10 max
F317	0.08	2.0	0.045	0.030	1.0	11.0-15.0	18.0-20.0	3.0-4.0
F317L	0.030	2.0	0.045	0.030	1.0	11.0-15.0	18.0-20.0	3.0-4.0
F321	0.08	2.0	0.045	0.030	1.0	9.0-12.0	17.0-19.0			(4)
F321H	0.04-0.10	2.0	0.045	0.030	1.0	9.0-12.0	17.0-19.0			(5)
F347	0.08	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(6)
F347H	0.04-0.10	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(7)
F348	0.08	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(6)		Co 0.20 Ta 0.10
F348H	0.04-0.10	2.0	0.045	0.030	1.0	9.0-13.0	17.0-20.0		(7)		Co 0.20 Ta 0.10
