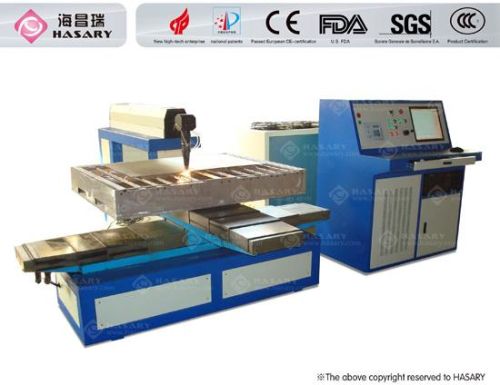

Stainless Steel Laser Cutting Tools, Brand Name : hasary

We are offering stainless steel laser cutting tools.
model of machine
hl-ylc500-0505
hl-ylc500-0404
hl-ylc500-0303
cutting area500mm*500mm 400mm*400mm 300mm*300mm
weight 400kg 390kg 380kg
cutting thickness 0.15-6mm
laser route
fixed laser route, work piece moving by cross slide working table
transmission method servo ballscrew
cutting positioning red light pointer
operating system windows 2000/xp
max output power 500w
laser wavelength 1064nm
pulse frequency 1-300hz
min line width 0.15mm
electrical source 380v/50hz/100a
x/y/z axis geometric positioning accuracy
≤±0.05m/1000mm
x/y/z axis re-orientation accuracy
≤±0.04mm
control system offline motion control
cooling system 7p water cooling
max cutting speed 35mm/s
applicable industries
yag laser cutter has been widely used in manufacture billboard high-low voltage electric cabinet kitchenware motor vehicle underground train machinery metal crafts etc.
applicable materials
suit for stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum sheet, gold, silver titanium sheet and pipes etc.
guarantee and after service
1. Whole set machine 1 year guarantee
2.24 hour technical support by email or calling 0086-18602717601
3. Endly english manual and cd for using and maintaining
4. Self-developed english software can do all sorts of pattern recognition.
